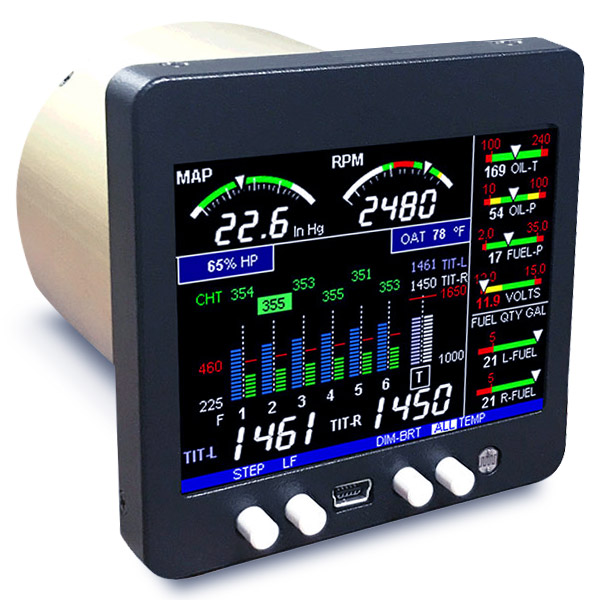

J.P. Instruments 3.25 EDM 350 6 Cylinder Basic Package Non-TSO

https://www.roctexo.com/web/image/product.template/126345/image_1920?unique=b79f530
Part numbers : RX1-10-06583 , 10-06583
Unit of Measure: EA

1266.37 EUR / EA 1266.37 EUR 1,266.37 € excl. VAT

1266.37 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The J.P. Instruments EDM-350 Basic Package is a compact engine data management instrument configured for six-cylinder EGT and CHT monitoring. This version is intended for experimental aircraft applications and provides a focused engine-temperature monitoring solution in the EDM-350 range.

The EDM-350 is a non-TSO instrument and is not EASA/FAA approved. It must not be represented as approved for installation in certified aircraft. Selection, configuration and installation should be completed in accordance with the applicable J.P. Instruments documentation and the aircraft’s approved or experimental operating requirements.

  • Model: J.P. Instruments EDM-350
  • Configuration: basic six-cylinder EGT/CHT monitoring package
  • Application: experimental aircraft only
  • Approval status: non-TSO; not EASA/FAA approved
  • Roctexo part number: RX1-10-06583
  • Unit of measure: each

Documentation: J.P. Instruments EDM-350 Installation Manual. Additional EDM-350 installation and pilot documentation is available from the J.P. Instruments technical manuals page.

Contact Us

Terms and Conditions

Share

Overview

Intended for installation in experimental aircraft only

If all you want is EGT/CHT then the basic kits gives you everything you could want in a compact size with full customization features and the legendary JPI quality and accuracy. The Engine Data Management 350 system is the most cost effective, reliable piston engine experimental EDM instrument on the market. The basic kit includes:
  • EGT - Exhaust Gas Temperature
  • CHT - Cylinder Head Temperature
  • Included - Probes and Harness
  • VDC - Voltage
  • CLD - Shock Cooling on "All" Cylinders
  • ROP/LOP - Lean Find
  • DIFF - Engine Health
  • USB - Data Port built in
  • Data Record - 600 Hrs. at every 6 sec
  • EZTrends - Graphing software, including Google Earth Location
The compact Engine Data Management 350 system (3.5″ square) is the most advanced and accurate piston experimental engine-monitoring instrument on the market. The EDM 350 is not just another black box along for the ride. It is a Flight Engineer, Maintenance Manager, and Backup Instrument. For the price there is nothing that gets close to it. Customize with 17 options, including FF. You can think of the EDM 350 as your personal flight engineer. It’s always there, working in the background, constantly watching over your engine while you concentrate on flying the aircraft. You can make an entire flight without ever pushing a button, if you so choose. Yet your EDM will be monitoring your engine parameters three times a second and will warn you instantly if any parameter exceeds the programmed limit.

Optional fuel pressure functionality available. If selected, order form must be completed that is available under "Documents".

Difference between the Basic/ Full Package:
  • Full comes with the P5- has the capability of AMPS1, fuel pressure, fuel level/tanks, and volt2.
  • Basic package doesn't have any of the above options

Features

  • Improved engine efficiency
  • Reduced maintenance costs
  • Greater fuel economy
  • Reduced operating costs
  • Smoother engine operation
  • Proper engine temperatures
  • Longer spark plug life
  • Reduced engine vibration
  • 3 year Warranty
  • Selectable Positions for Linear gauges

Optional Functions

  • RPM - Engine
  • MAP - Manifold Pressure
  • O-T - Oil Temperature
  • O-P - Oil Pressure
  • F-P - Fuel Pressure
  • OAT - Outside Air Temp
  • TIT - Turbine Inlet Temp
  • CRB - Carburertor Temp
  • CDT - Compressor Discharge Temp
  • AMP - Current Amps or Load

Specifications

  • EGT 4 or 6 probes
  • CHT 4 or 6 probes
  • Volts
  • Shock cooling
  • LOP/ROP JPI Exclusive Leaning Mode
  • Fuel Flow (USED, Remaining, GPH
  • Endurance, GPS destination)
  • MAP
  • Oil Temperature
  • Oil Pressure
  • OAT
  • %HP (Requires: OAT, RPM, MAP, & FF )
  • Power connector
  • All required Harness
  • EZTrends
  • Data recording-100 hrs. Download USB
  • 1 GB memory stick
  • Selectable Positions for Linear gauges
  • 3 year Warranty
  • Optional functions
  • CDT
  • IAT
  • CARB Temperature
  • TIT
  • L-R Main - Fuel Quantity, L/R Main
  • V-2 - Second Volts
  • Amp-2 - Second Amps
  • % HP - Requires FF, OAT, and RPM
  • Fuel Flow - Fuel Flow includes:
  • GPH - Gallons per hour
  • REQ - Fuel Required
  • USD - Fuel Used
  • H:M - Endurance Hours and Minutes
  • MPG - Miles per gallons
