Thiesen Aircraft Lighting

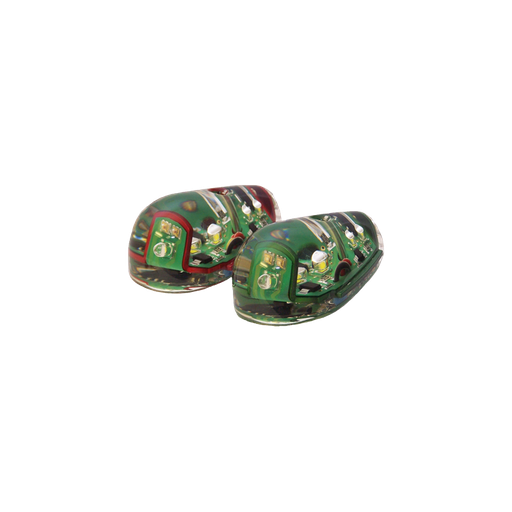

Paired wingtip units combine red/green position lights, white tail lights and anti-collision flashing. Includes a FLARM interface and Intelligent Synchronization. Designed for non-TSO aircraft; installation suitability must be checked for the aircraft.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 20 Watts (approx.)
Dimensions: 80 x 40 x 30 mm (L x W x H)
Weight: approx. 76 Grams including connecting cables
Fuse: 5 Amp. (fusible cut-out or automatic fuse)
Drill hole: 4.5 mm
Warranty: 5.000 operating hours or max. 3 years
Sales unit: One red/green set (two light units)
Weight basis: Published lamp weight; complete set shipping weight has not been confirmed.

RX30-EPTA-NG

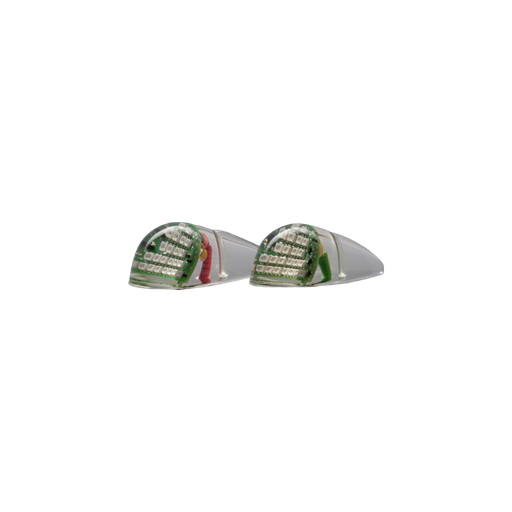

A set of two LED wingtip position lights, one red and one green. Designed for non-TSO aircraft, with a 110-degree light sector and prewired connections.

Color: red and green
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: each EPL 4.5 Watts (approx.)
Dimensions: 93 x 40 x 28 mm (L x B x H)
Weight: approx. 78 Grams including connecting cables
Warranty: 5.000 operating hours or max. 3 years
Sales unit: One red/green set (two light units)
Weight basis: Published lamp weight; complete set shipping weight has not been confirmed.

RX30-EPL

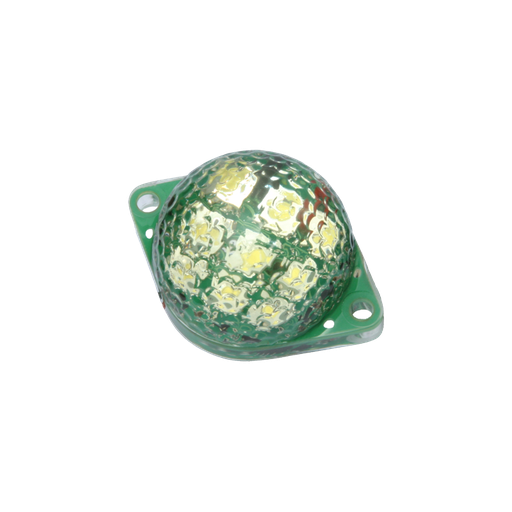

White LED tail position light with a 140-degree light sector and modulated pulses for visibility. Prewired for installation on the fuselage tail or rudder.

Color: white
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 3 Watts (approx.) (at approx. 250 mA power consumption)
Dimensions: 60 x 44 x 28 mm (L x B x H)
Weight: approx. 50 Grams including connecting cable
Drill hole: 4.5 mm
Warranty: 5.000 operating hours or max. 3 years

RX30-EPL-TL

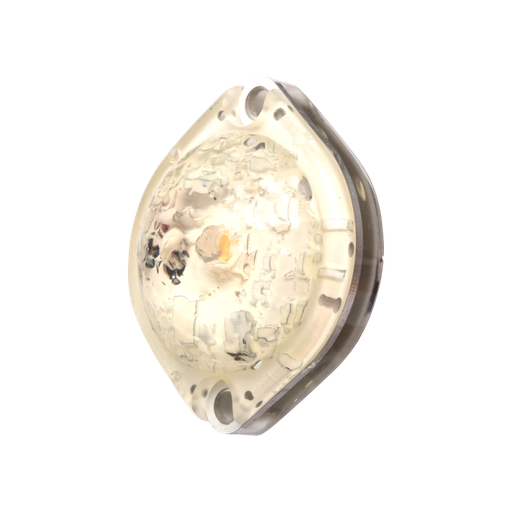

White LED tail light with an anti-collision flashing mode and Intelligent Synchronization. Designed for non-TSO aircraft and a 140-degree light sector. Includes mounting instructions and heat-shrink tubing.

Color: Bright white light
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 5 Watts (approx.), 1 Amp. peak current
Dimensions: 52.6 x 42 x 21.5 mm (L x W x H)
Weight: approx. 28 Grams including cables
Drill hole: 4.5 mm
Warranty: 5.000 operating hours or max. 3 years from date of purchase

RX30-TL-NG

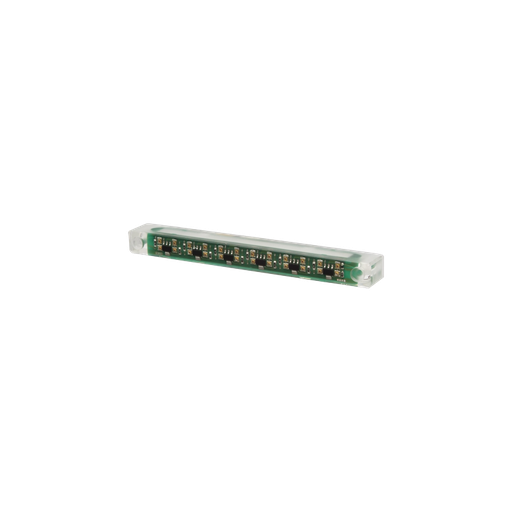

Compact LED anti-collision module with integrated electronics, intended for aircraft lighting installations.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 20 Watts (approx.)
Dimensions: 165 x 15 x 20 mm
Weight: 58 Grams (approx.)
Fuse: 5 Amp. (fusible cut-out or automatic fuse)
Drill hole: 4.5 mm
Warranty: 5.000 operating hours or max. 3 years

RX30-ACL-Modul

Red LED anti-collision light with FLARM and Intelligent Synchronization interfaces.

Color: red
Wattage: 10 Watts (approx.)
Weight: approx. 86 Grams including connecting cables
Interface: FLARM and Intelligent Synchronization
Drill hole: 4.5 mm
Diameter: 44 mm (approx.)
Height: 39 mm (approx.)
Flange to flange: 61 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ACL4

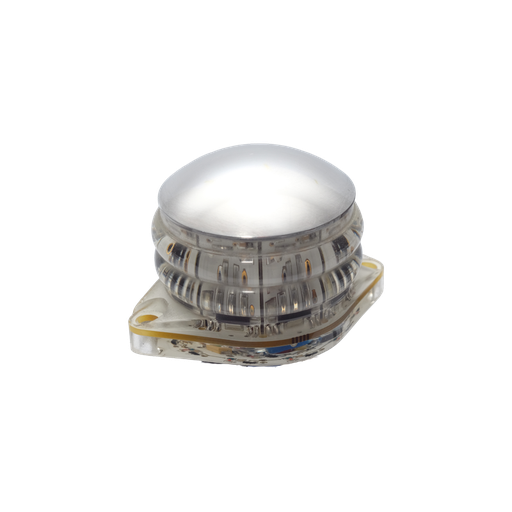

Red electronic rotating beacon with FLARM and Intelligent Synchronization interfaces.

Color: red
Wattage: 12.8 Watts (approx.)
Weight: approx. 85 Grams including connecting cables
Interface: FLARM and Intelligent Synchronization
Drill hole: 4.5 mm
Diameter: 44 mm (approx.)
Height: 39 mm (approx.)
Flange to flange: 61 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years from date of purchase

RX30-ERB-UL

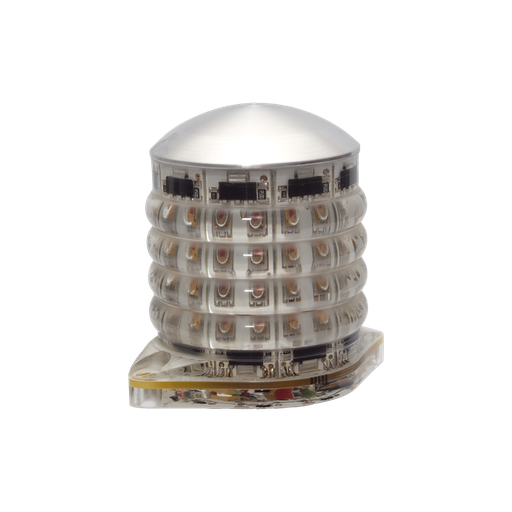

Red electronic rotating beacon with FLARM and Intelligent Synchronization interfaces.

Color: red
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 16 Watts (approx.)
Weight: approx. 105 Grams including connecting cables
Interface: FLARM and Intelligent Synchronization
Drill hole: 4.5 mm
Diameter: 44 mm (approx.)
Height: 56 mm (approx.)
Flange to flange: 61 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ERB2

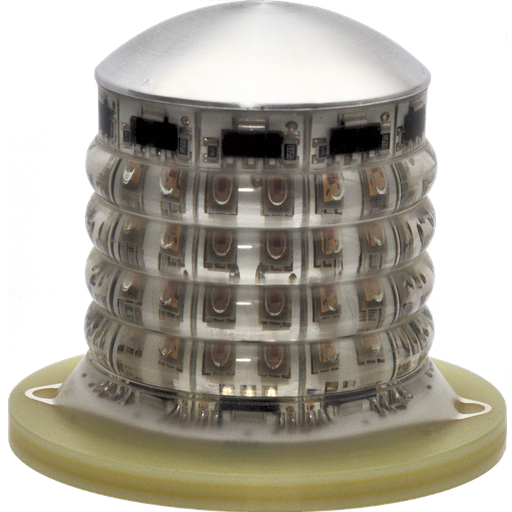

Red electronic rotating beacon for aircraft lighting installations.

Color: red
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 16 Watts (approx.)
Weight: approx. 125 Grams including connecting cables
Diameter: 44 mm (approx.)
Height: 55 mm (approx.)
Flange to flange: 63.5 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ERB2-H

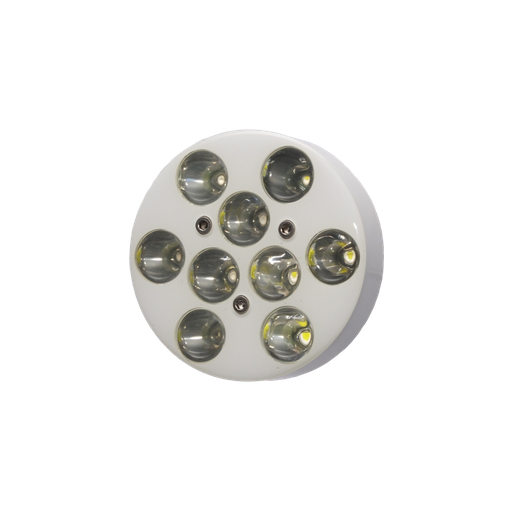

LED landing light incorporating an anti-collision function. Uses Intelligent Synchronization to coordinate flashing with compatible lights.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: Landing Light approx. 45 Watts, ACL approx. 20 Watts (Replaces a 140 Watts Halogen Lamp)
Weight: approx. 230 Grams includings connecting cables
Brightness: over 75.000 Candela
Diameter: 80 mm (approx.)
Installation depth: 35 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ELL80is

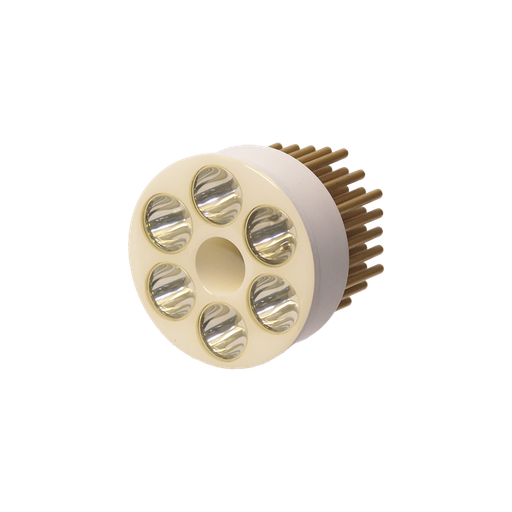

High-output LED landing light with integrated electronics. Manufacturer specifies output above 100,000 candela.

Wattage: 60 Watts (approx.) (Replaces a 180 - 200 Watts Halogen Lamp)
Weight: approx. 130 Grams including connecting cables
Fuse: 10 Amp. (fusible cut-out or automatic fuse)
Brightness: over 100.000 Candela
Diameter: 60 mm (approx.)
Installation depth: 50 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ELL60

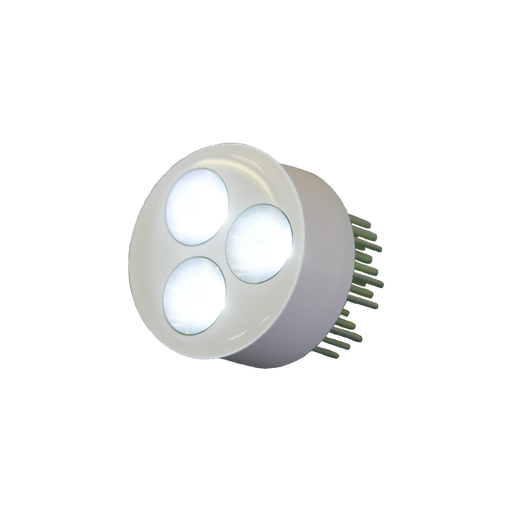

LED landing light with an anti-collision function and Intelligent Synchronization. Manufacturer specifies output above 50,000 candela.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 30 Watts (approx.) (Replaces a 90 Watts Halogen Lamp)
Weight: approx. 78 Grams including connecting cables
Fuse: 5 Amp. (fusible cut-out or automatic fuse)
Brightness: over 50.000 Candela
Diameter: 50 mm (approx.)
Installation depth: 40 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ELL50

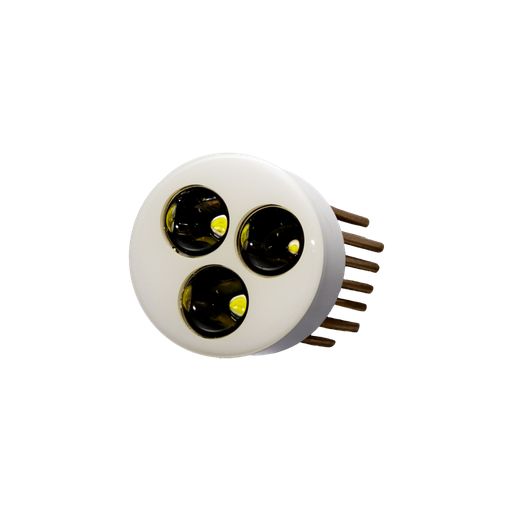

Extended ELL50L LED landing light. Manufacturer specifies a 50 mm diameter, approximately 65 mm installation depth, 30 W power and output above 50,000 candela.

Wattage: Approximately 30 W; replaces a 90 W halogen lamp
Weight: Approximately 105 g including connecting cable
Fuse: 5 A fuse or resettable circuit breaker
Brightness: Over 50,000 candela
Diameter: Approximately 50 mm
Installation depth: Approximately 65 mm
Warranty: 5,000 operating hours or 3 years, whichever occurs first

RX30-ELL50L

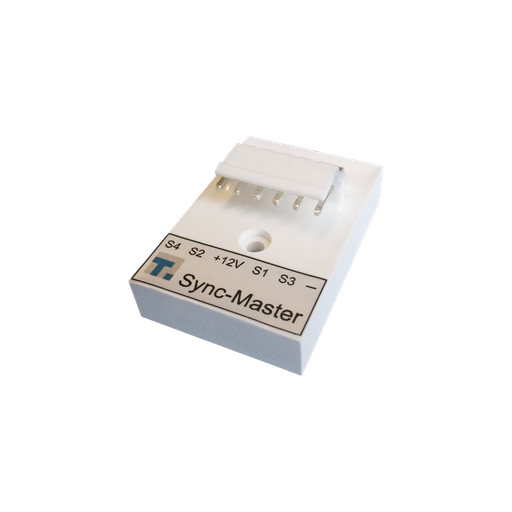

Controller for coordinating compatible Thiesen aircraft lights using Intelligent Synchronization.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Dimensions: 47 x 32 x 10 mm (+10 mm pins)
Weight: 24 Grams (approx.)
Warranty: 3 years

RX30-Sync-Master

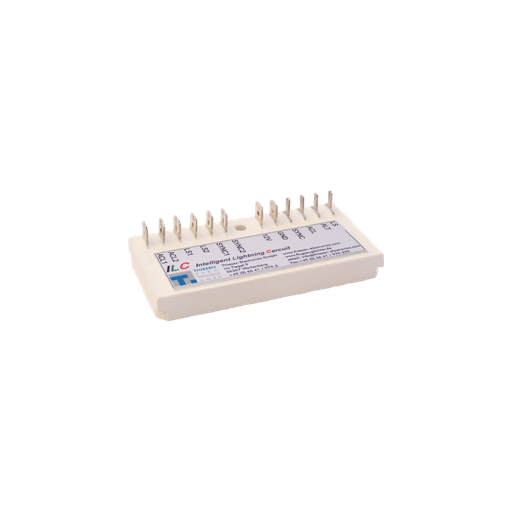

Intelligent Lighting Circuit for controlling compatible aircraft lighting installations.

Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: -
Dimensions: 84 x 42 x 10 mm (+10 mm for contacts row)
Weight: 65 g
Fuse: 5 Amps Fuse or Circuit Breaker
Drill hole: 4 mm
Warranty: 5,000 hrs or 3 years (depending on what occurs first)

RX30-ILC

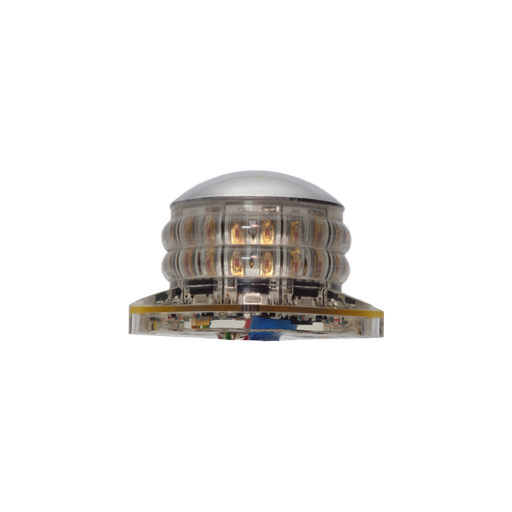

Red UAV anti-collision light for a nominal 12 V supply. Supports FLARM and remote-control inputs.

Color: red
Operation voltage: 10 - 17 Volts (DC), typically: 12.8 - 13.4 Volts (on-board power supply)
Wattage: 8 Watts (approx.)
Weight: 85 Grams (approx.) including connecting cables
Interface: FLARM and Remote Control
Drill hole: 4.5 mm
Diameter: 44 mm (approx.)
Height: 39 mm (approx.)
Flange to flange: 61 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ACL-UAV-12V

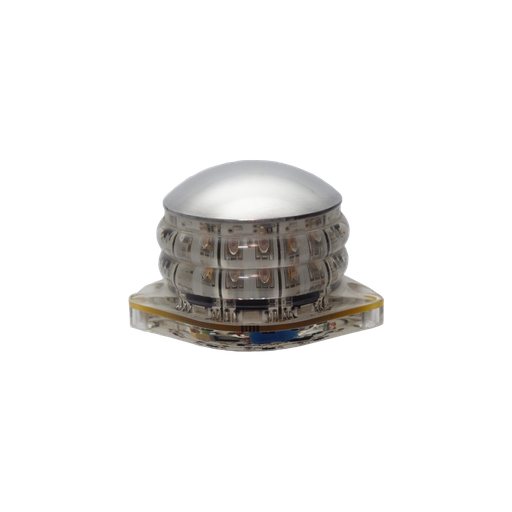

Red UAV anti-collision light for a 2S LiPo battery supply. Includes a remote-control input.

Color: red
Operation voltage: 6.8 - 9 Volts (DC), LiPo-Akku 2S
Wattage: 5 Watts (approx.)
Weight: 85 Grams (approx.) including connecting cables
Interface: remote control input
Drill hole: 4.5 mm
Diameter: 44 mm (approx.)
Height: 39 mm (approx.)
Flange to flange: 61 mm (approx.)
Warranty: 5.000 operating hours or max. 3 years

RX30-ACL-UAV-LiPo

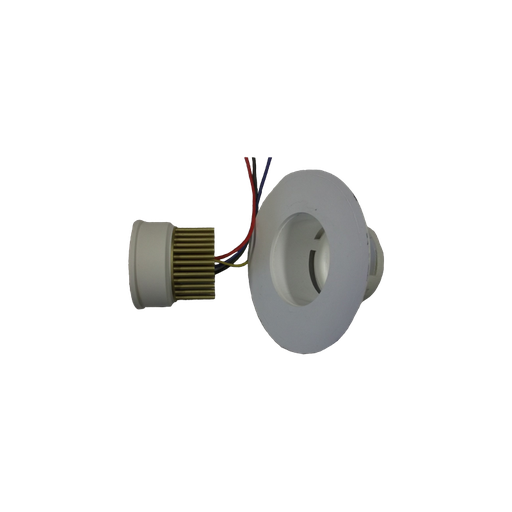

Mounting tube for the ELL60 landing light. Version: ELL60F. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL60F

RX30-ET-ELL60F

Mounting tube for the ELL60 landing light. Version: ELL60. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL60

RX30-ET-ELL60

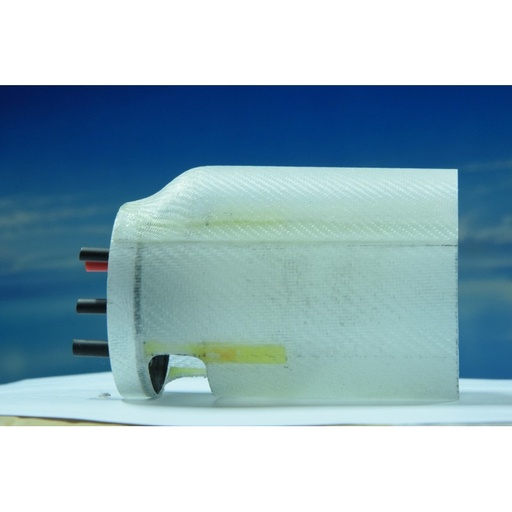

Mounting tube for the ELL50 / ELL50L landing light. Version: ELL50i/o. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL50i/o

RX30-ET-ELL50IO

Mounting tube for the ELL50 / ELL50L landing light. Version: ELL50F. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL50F

RX30-ET-ELL50F

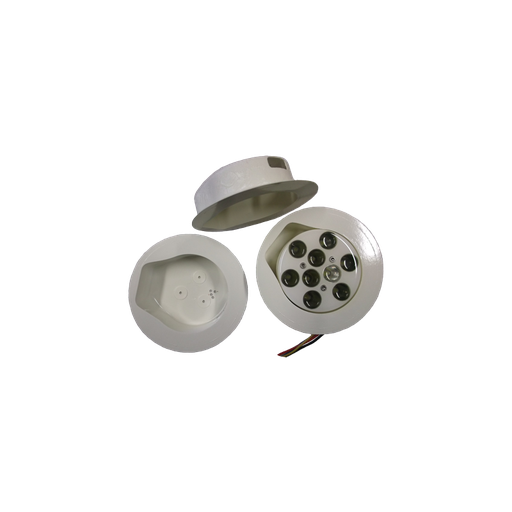

Mounting tube for the ELL80is landing light. Version: ELL80F. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL80F

RX30-ET-ELL80F

Mounting tube for the ELL80is landing light. Version: ELL80. Light sold separately. Supplier catalogue pictures show the product family; confirm mounting geometry before ordering.

Version: ELL80

RX30-ET-ELL80
