BOLT 1-5/32

Image for illustration only. It may show a product series rather than the exact product offered.

BOLT 1-5/32

https://www.roctexo.com/web/image/product.template/327961/image_1920?unique=5e542ef
Part numbers : RX22-AFC-AN3-11A , AN3-11A , AFC-AN3-11A
Unit of Measure: EA

0.28 EUR / EA 0.28 EUR 0.28 € excl. VAT

0.28 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 11,444 EA ready to ship on Thursday 2026-10-22
Order before 16:00 CET Today
347 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

Airfasco AN3-11A aircraft bolt for aerospace fastener requirements. This alloy-steel bolt has an approximate overall length of 29.4 mm, a 19.1 mm grip length, and a 10-32 UNF-3A rolled thread.

  • Manufacturer: Airfasco
  • Manufacturer part number: AN3-11A
  • Material: Alloy steel, grade 4037 or 8740
  • Finish: Cadmium plated to AMS-QQ-P-416, Type II, Class 2
  • Nominal body diameter: 4.7–4.8 mm
  • Thread length: approximately 10.3 mm
  • Locking mechanism: None
  • Unit of measure: Each

Refer to the applicable maintenance data and approved engineering documentation to confirm correct part selection and installation.

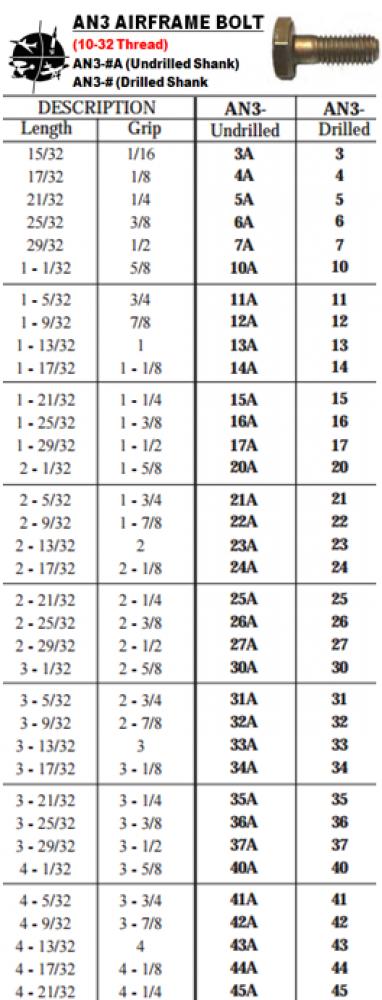

Manufacturer drawing: AN3-11A
