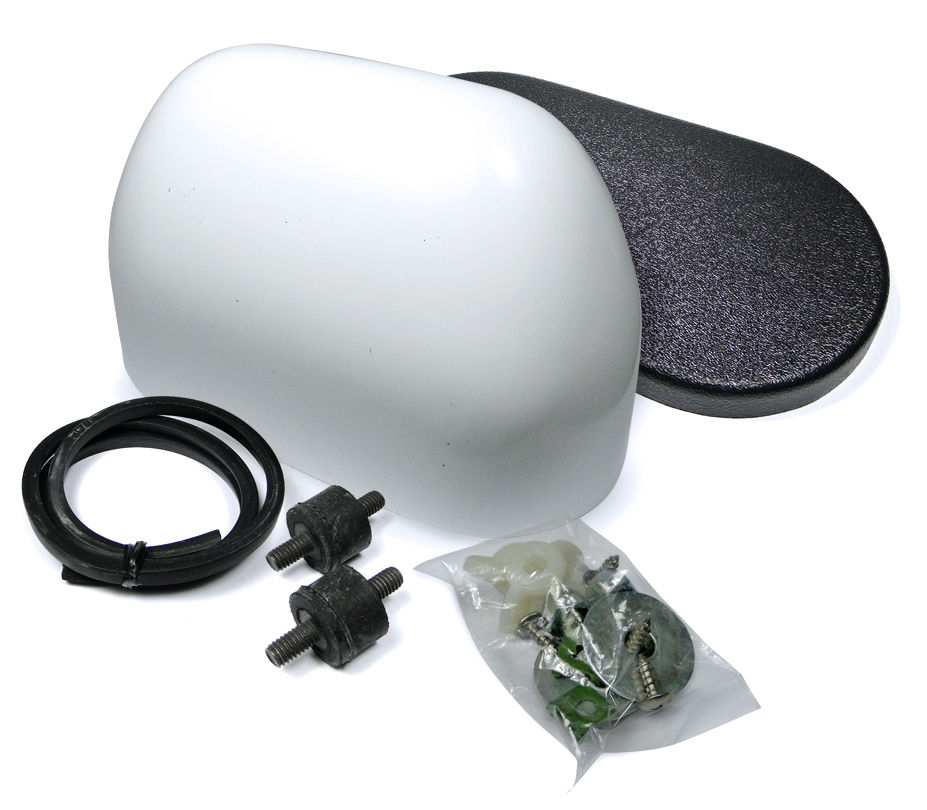

Pod Kit Uncut White

The Pod Kit Uncut White is a white instrument pod kit for pilots or builders who wish to create their own instrument-panel layout. The kit is supplied with an uncut black pod face, allowing the instrument cut-outs to be configured to suit the intended installation.

Part number: SS110W
Roctexo part number: RX1-SS110W

The pod may be oriented horizontally or vertically. Its layout is designed to accommodate up to six 57 mm instruments, one 80 mm instrument and four 51 mm instruments; alternatively, it can accommodate two 80 mm instruments and two 51 mm instruments.

• Approximate dimensions: 152 mm high × 283 mm wide × 178 mm deep
• White pod shell
• Uncut black pod face
• Mounting hardware included, including commercial-grade 5/16-18 hardware, Lord engine mounts J-4624-57, AN970-5 flat washers, plastic wing nuts, stainless-steel sheet-metal screws, U-channel and U-type Tinnerman fasteners
• Instruments and wiring are not included
• Unit of measure: each
• Listed product weight: 0.363 kg

Suitable where a custom-cut instrument pod face is required as part of an aircraft instrument installation or build project. Verify dimensions, installation requirements and applicable approval requirements before use.
