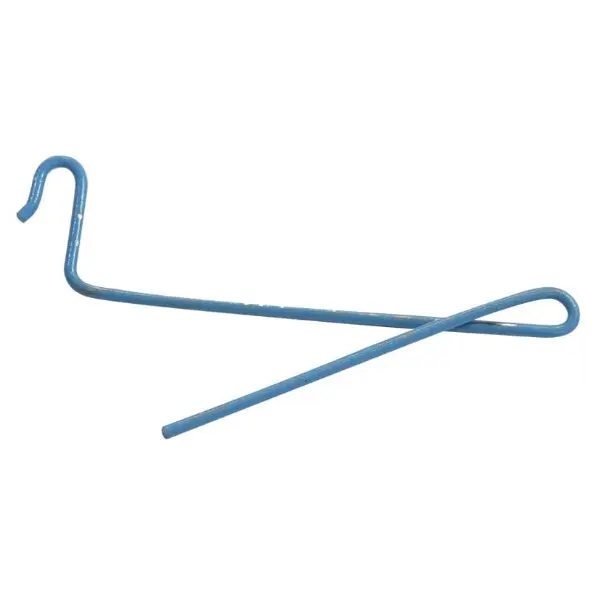

Turnbuckle Clip MS21256-1

Turnbuckle Clip MS21256-1

https://www.roctexo.com/web/image/product.template/28289/image_1920?unique=6a82cae
Part numbers : RX1-MS21256-1 , MS21256-1 , MS21256-1
Unit of Measure: EA

0.41 EUR / EA 0.41 EUR 0.41 € excl. VAT

0.41 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
49 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
Up to 985 EA ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-10
1,697 EA available on request, fees apply
Special order from vendor stock.

The MS21256-1 is a short locking clip for clip-locking turnbuckle assemblies. It is intended for use with compatible slotted turnbuckle barrels and terminals, where the aligned slots accept the clip after cable tension has been set.

The curved ends of the clip engage the central vertical slot in the turnbuckle barrel to retain the clip in position. Clip-locking turnbuckle arrangements use two locking clips per completed assembly.

  • Part number: MS21256-1
  • Type: short turnbuckle locking clip
  • Nominal length: approximately 25 mm
  • Unit of supply: each

Please confirm the required turnbuckle component configuration and applicable maintenance data before installation.

Contact Us

Terms and Conditions

Share

Overview

Clip-Locking Turnbuckles utilize 2 locking clips instead of lock-wire for safety. The turnbuckle barrel and terminals are slotted lengthwise to accommodate the locking clips. After the proper cable tension is reached the barrel slots are aligned with the terminal slots and the clips are inserted. The curved ends of the locking clips expand and latch in the vertical slot in the center of the barrel. Build up MS turnbuckle as sem blies, similar to the AN assemblies listed on the preceding page, by selecting a turnbuckle barrel, 2 end fittings and 2 clips from the components listed in the Table below. The price of the complete as sem bly is the sum of the prices shown for the components.

Example: An MS turnbuckle assembly for 3/32" dia. cable, with fork end and pin eye consists of:
    1 MS21251-B3S Barrel
    1 MS21252-3LS Fork End
    1 MS21254-3RS Pin Eye End
    2 MS21256-1 Clips

Note: MS21256-1 clips are short (1") and MS21256-2 are long (2").
