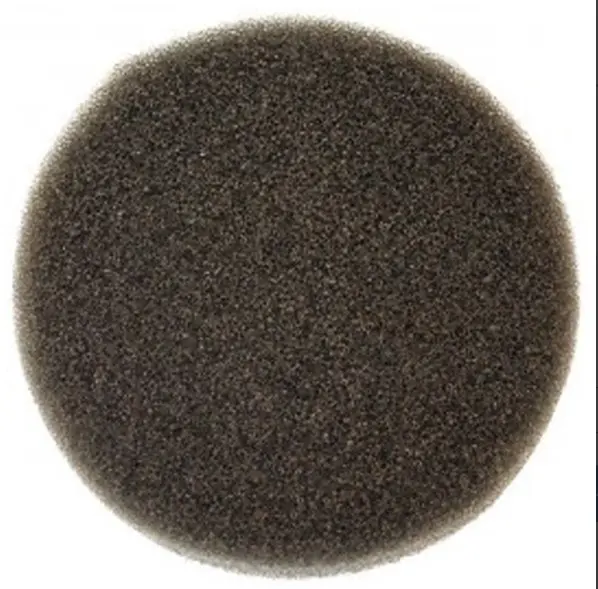

Brackett Aero Element Air Filter BA-25 For BA-113

https://www.roctexo.com/web/image/product.template/127914/image_1920?unique=f5bce24

Part Number(s): BA-25

18.85 € 18.85 EUR 18.85 € Tax Excluded

207.07 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-BA-25

Overview

Note: if you know which air filter or element number you need, simply type it into the search to quickly locate the individual part's product page. If you don't know, please use this page as a guide to find what you need then use the drop-down selector to order the correct model number.

The specially treated polyurethane element in the Brackett filter assures near total protection from any foreign material entering the system. Repels water, fire retardant and has good air flow for proper fuel/air ratio. Has no pleats to collect dirt. Low-cost maintenance with increased engine life. FAA approved. Replace original air filter unit with a Brackett assembly. Thereafter, throw away element and replace with new one at minimal cost.

Partial List, request prices on unlisted Aircraft Applications.


Application Guide


BA3

Diameter: 6-5/8"x 11"
Thickness: 1"
Height: 3-5/4"
Weight: ..50 lbs (Approximate)
P/N BA3

BA4

Length: 13-1/2"
Width: 4-1/2"
Height: 1"
Weight: .14 lbs (Approximate)
P/N 08-00559

BA14

Length: 10-1/4"
Width: 3-1/2"
Height: 1"
Weight: .14 lbs (Approximate)
P/N BA14

BA16

Length: 5-15/16"
Width: 5-15/16"
Height: 1"
Weight: .04 lbs (Approximate)
P/N BA16

BA19

Length: 6-1/4"
Width: 3-3/4"
Height: 2"
Weight: .08 lbs (Approximate)
P/N BA19

BA21

Length: 17-3/8"
Width: 5-1/2"
Height: 2"
Weight: .26 lbs (Approximate)
P/N 08-01255

BA100

Length:10-7/8"
Width: 6-3/8"
Height: 2"
Weight: 1.1 lbs (Approximate)
P/N BA100
Element - BA7

BA101

Length: 7-1/2"
Width: 7"
Height: 1"
Weight: .58 lbs (Approximate)
P/N BA101
Element - BA8

BA102

Outer Diameter: 8-1/8"
Height: 4-1/8"
Weight: .62 lbs (Approximate)
Thickness: 1"
P/N 08-21102
Element - BA2
P/N 08-01249

BA103

Outer Diameter: 8-7/8"
Height: 5-3/4"
Weight: .70 lbs (Approximate)
Thickness: 1"
P/N 08-01250
Element - BA9
P/N 08-01251

BA104

Outer Diameter: 6-5/8 x 11"
Height: 3-5/8"
Weight: .50 lbs (Approximate)
Thickness: 1"
P/N BA104
Element - BA3

BA105

Outer Diameter: 8"
Height: 3-3/4"
Weight: .44 lbs (Approximate)
Thickness: 1"
P/N BA105
Element - BA10

BA106

Outer Diameter: 6"
Height: 3-1/2"
Weight: .34 lbs (Approximate)
Thickness: 1"
P/N BA106
Element - BA11

BA107

Outer Diameter: 6"
Height: 7-1/4"
Weight: .60 lbs (Approximate)
Thickness: 1"
P/N 08-05888
Element - BA12
P/N 08-02112

BA108

Outer Diameter: 6"
Height: 9-1/4"
Weight: 1.26 lbs (Approximate)
Thickness: 1"
P/N BA108
Element - BA13

BA109

Outer Diameter: 10-1/4"
Height: 3-1/2"
Weight: .56 lbs (Approximate)
Thickness: 1"
P/N BA109
Element - BA22

BA110

Outer Diameter: 8-1/8"
Height: 3-1/8"
Weight: .42 lbs (Approximate)
Thickness: 1"
P/N BA110
Element - BA23
P/N 08-02123

BA111

Outer Diameter: 4-5/8"
Height: 5-3/4"
Weight: .36lbs (Approximate)
Thickness: 1"
P/N BA111
Element - BA24

BA112

Outer Diameter: 6"
Height: 8-1/2"
Thickness: 1"
P/N 08-21112
Element - BA13

BA113

(NOTE: This is for the Navion A, but only those with the (E) Series Engine.)

Outer Diameter: 6-1/2"
Thickness: 2"
Weight: .34 lbs. (Approximate)
P/N BA113
Element - BA25

BA115

Outer Diameter: 10"
Height: 3-3/8"
Thickness: 1"
Weight: .54 lbs. (Approximate)
P/N BA115
Element - BA15

BA118

Outer Diameter: 6-3/16"
Inner Diameter: 4-2/5"
Height: 6-1/4"
Thickness: 7/8"
Weight: .56 lbs. (Approximate)
P/N 08-00118
Element - BA18
P/N 08-02118

BA120

Outer Diameter: 7-7/8"
Height: 2-5/8"
Thickness: 3/4"
Weight: .38 lbs. (Approximate)
P/N BA120
Element - BA20

BA121

Outer Diameter: 5-1/3"
Height: 3-1/2"
Thickness: 7/8"
Weight: .28 lbs. (Approximate)
P/N BA121
Element - BA27

BA151

Length: 9-7/8"
Width: 8-9/16"
Height: 2"
Weight: .76 lbs. (Approximate)
P/N 08-01243

Element - BA151E

P/N 08-01244

BA162

Length: 6-1/2"
Width: 3-3/4"
Height: 3/4"
Weight: .06lbs. (Approximate)

-----------

Element - BA162E

P/N 08-01257

BA2010

Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .60 lbs (Approximate)
P/N BA2010
Element - BA6108

BA2110

Length:10"
Width: 4-1/32"
Height: 2"
Weight: .74 lbs (Approximate)
P/N BA2110
Element - BA2305

BA2210L

Length: 9"
Width: 4-1/4"
Height: 2"
Weight: .90 lbs (Approximate)

P/N BA2210L

Element - BA2205L

BA2210R

Length: 9"
Width: 4-1/4"
Height: 2"
Weight: .90 lbs (Approximate)

P/N BA2210R

Element - BA2205R

BA2310

Length:10"
Width: 4-1/32"
Height: 2"
Weight: .78 lbs (Approximate)
P/N BA2310
Element - BA2305

BA2510

Length:8-15/16"
Width: 6-1/2"
Height: 2"
Weight: 1.06 lbs (Approximate)
P/N BA2510
Element - BA2505

BA2610L

Length: 10-13/32"
Width: 4-25/32"
Height: 2"
Weight: .50 lbs (Approximate)

P/N 08-05890

Element - BA2605L
P/N 08-00877

BA2610R

Length: 10-13/32"
Width: 4-25/32"
Height: 2"
Weight: .50 lbs (Approximate)

P/N 08-05903

Element - BA2605R
P/N 08-00878

BA2910

Length: 10"
Width: 4-1/2"
Height: 2"
Weight: .90 lbs (Approximate)
P/N 08-05891
Element - BA2905

BA3110

Length: 8"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)
P/N 08-01256
Element - BA7305

BA3110A

Length: 8"
Width: 5"
Height: 2"
Weight: .70 lbs (Approximate)

P/N BA3110A

Element - BA7305

BA3210

Length: 8"
Width: 6-1/2"
Height: 2"
Weight: .84 lbs (Approximate)

P/N BA3210

Element - BA3205

BA3310

Length: 11-13/16"
Width: 7-9/16"
Height: 2"
Weight: 1.36 lbs (Approximate)

----------

Element - BA3305
P/N 08-01260

BA3510

Length: 10-7/8"
Width: 5-5/8"
Height: 2"
Weight: 1.06 lbs (Approximate)

----------

Element - BA3505
P/N 08-03505

BA3810

Diameter: 9-1/4"
Height: 2"
Weight: 1.06 lbs (Approximate)

----------

Element - BA3805
P/N 08-05892

BA3910

Length: 8-1/2"
Width: 5-5/8"
Height: 1"
Weight: .50 lbs (Approximate)

P/N BA3910

Element - BA3905

BA4010

Length: 10"
Width: 7"
Height: 3/4"
Weight: .64 lbs (Approximate)

P/N BA4010

Element - BA4005

BA4106

Length: 5"
Width: 5-1/2"
Height: 1"
Weight: .44 lbs (Approximate)

P/N BA4106

Element - BA4108
Gasket - BA4101

BA4210

Length: 5"
Width: 5-1/2"
Height: 1"
Weight: .44 lbs (Approximate)

P/N BA4210

Element - BA4108

BA4310

Length: 6"
Width: 5"
Height: 2"
Weight: .64 lbs (Approximate)

P/N 08-05893

Element - BA4305

BA4510

Length: 10"
Width: 5-1/2"
Height: 2"
Weight: 1.00 lbs (Approximate)

----------

Element - BA4505
P/N 08-01258

BA4810

Length: 10"
Width: 6-1/2"
Height: 2"
Weight: .98 lbs (Approximate)

----------

Element - BA4805
P/N 08-01245

BA5110

Length: 6"
Width: 6-1/2"
Height: 1"

P/N BA5110

Element - BA6108

BA5110A

Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .60 lbs (Approximate)

P/N BA5110A

Element - BA6108

B5710

Length: 7-3/4"
Width: 6-15/16"
Height: 1"
Weight: .78 lbs (Approximate)

P/N BA5710

Element - BA5705

BA5810

Length: 9"
Width: 5-5/8"
Height: 2"
Weight: .88 lbs (Approximate)

P/N 08-00879

Element - BA5805

BA6110

Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .62 lbs (Approximate)

P/N BA6110

Element - BA6108

BA6210

Length: 8-23/64"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)

P/N BA6210

Element - BA6205

BA6210-1

Length: 8-1/4"
Width: 5"
Height: 2"
Weight: .74 lbs (Approximate)

P/N 08-01246

Element - BA6205

BA6310

Length: 6-3/4"
Width: 10-1/2"
Height: 1"
Weight: .50 lbs (Approximate)

P/N BA6310

Element - BA6305

BA7010

Length: 6-1/2"
Width: 5-7/8"
Height: 2"
Weight: .72 lbs (Approximate)

P/N 08-01247

Element - BA7005
P/N 08-01248

BA7110

Length: 9-3/4"
Width: 5"
Height: 2"
Weight: .90 lbs (Approximate)

P/N BA7110

Element - BA7112

BA7210

Length: 10"
Width: 5"
Height: 2"
Weight: .40 lbs (Approximate)

P/N BA7210

Element - BA7112

BA7310

Length: 7-3/4"
Width: 5"
Height: 2"
Weight: .74 lbs (Approximate)

P/N BA7310

Element - BA7305

BA7410

Length:10"
Width: 5"
Height: 2"
Weight: .92 lbs (Approximate)

P/N BA7410

Element - BA7112

BA7510

Length:8-1/4"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)

P/N BA7510

Element - BA7305

BA7610

Length:10-7/16"
Width: 4"
Height: 2"
Weight: .84 lbs (Approximate)

P/N BA7610

Element - BA7605

BA7710

Length: 8-5/16"
Width: 6-1/8"
Height: 2"
Weight: .84 lbs (Approximate)

P/N BA7710

Element - BA7705

BA7810

Length:8-1/4"
Width: 4-15/16"
Height: 2"
Weight: .54 lbs (Approximate)

P/N BA7810

Element - BA7805
