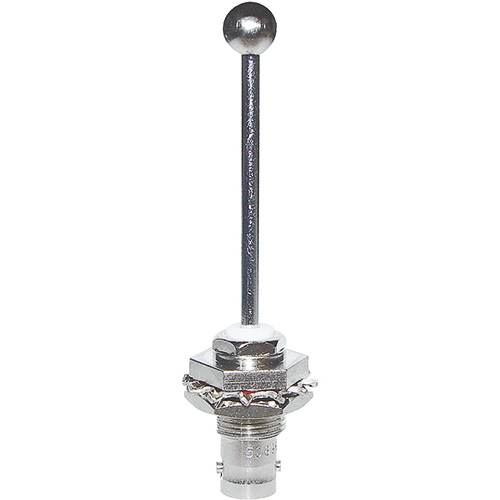

RAMI AV-22 Transponder Antenna TSO
Part Number(s): AV-22
Unit of Measure Name:
Units
Internal Reference:
RX1-AV-22
Overview
| The AV-22 is a rod style transponder antenna utilizing its BNC connector for mounting to the airframe. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs @ 250 mph. It is a direct replacement for the CI 101, and can also be used as an ABS-B antenna. Frequency: 1030-1090 |
Specifications
- Application: Transponder
- Frequency: 1030-1090 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.3:1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: “BNC” Female
- Weight: 1 oz.
- RF Power Capacity: 1 KW Peak Pulse @ 1% Duty Cycle
- FAA TSO: C74c
