Washer Flat AN970-7

Image for illustration only. It may show a product series rather than the exact product offered.

Washer Flat AN970-7

https://www.roctexo.com/web/image/product.template/23954/image_1920?unique=182fd28
Part numbers : RX1-AN970-7 , 10277-10 , AN970-7
Unit of Measure: EA

2.01 EUR / EA 2.01 EUR 2.01 € excl. VAT

2.01 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
10 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 189 EA ready to ship on Thursday 2026-10-22
Order before 15:30 CET Tomorrow
Up to 212 EA ready to ship on Monday 2026-10-26
Order before 15:30 CET Tomorrow
370 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

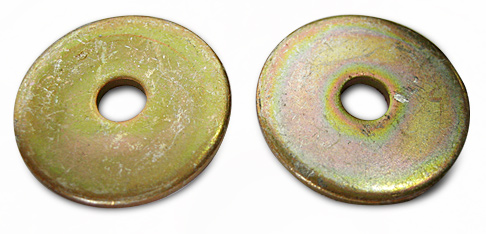

The AN970-7 is a flat washer manufactured from carbon steel with a cadmium-plated finish. Its wide outside diameter provides a greater bearing area than a standard AN960 washer.

Suitable for use where a broad load-distribution surface is required, including wooden structures under the bolt head and nut to help reduce surface crushing. Installation and suitability should be confirmed against the applicable approved maintenance data.

  • Part number: AN970-7
  • Manufacturer part number: 10277-10
  • Roctexo part number: RX1-AN970-7
  • Nominal bolt size: 7/16 in. (approximately 11.1 mm)
  • Outside diameter: 1.812 in. (approximately 46.0 mm)
  • Inside diameter: 0.453 in. (approximately 11.5 mm)
  • Thickness: 0.109 in. (approximately 2.8 mm)
  • Material and finish: carbon steel, cadmium plated
  • Unit of measure: each
