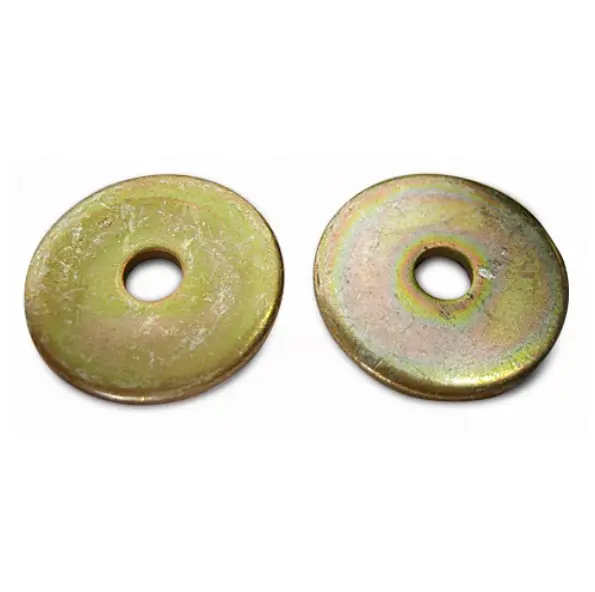

Washer Flat AN970-6

Washer Flat AN970-6

https://www.roctexo.com/web/image/product.template/14928/image_1920?unique=9a4d91e
Part numbers : RX1-AN970-6 , 10274-10 , 10274-5 , AN970-6
Unit of Measure: EA

0.58 EUR / EA 0.58 EUR 0.58 € excl. VAT

0.58 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
100 EA ready to ship Today
Order before 15:30 CET Today
Up to 820 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET Today
Up to 1,034 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET Today
2,080 EA available on request, fees apply
Special order from vendor stock.

The AN970-6 is a flat, wide-area washer designed for 3/8 in (9.5 mm nominal) bolt applications. Its larger bearing surface helps distribute bolt or nut loads over the supporting material.

  • Carbon-steel washer with cadmium plating
  • Nominal bolt size: 3/8 in (9.5 mm)
  • Outside diameter: 1.625 in (41.3 mm)
  • Inside diameter: 0.390 in (9.9 mm)
  • Thickness: 0.063 in (1.6 mm)
  • Suitable where a greater bearing area is required, including under bolt heads and nuts on wooden structures
  • Manufacturer part numbers: 10274-10, 10274-5

Supplied as one each.

Contact Us

Terms and Conditions

Share

Dash No.Bolt SizeO.D.
(in.)		I.D.
(in.)		Thickness
(in.)		Description
63/81.625.390.063Cadmium


Overview

Manufactured of carbon steel, cadmium plated per QQ-P-416C, Type II, Class 2. They provide a greater bearing area than AN960 washers. Used on wooden structures under both the head of the bolt and the nut to prevent crushing the surface.

Reference Chart
