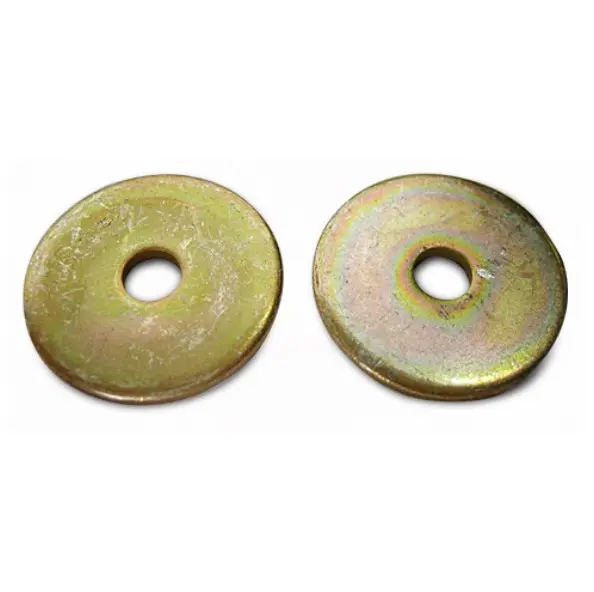

Washer Flat AN970-3

Image for illustration only. It may show a product series rather than the exact product offered.

Washer Flat AN970-3

https://www.roctexo.com/web/image/product.template/77417/image_1920?unique=9270eb9
Part numbers : RX1-AN970-3 , 10270-25 , 10270-50 , AN970-3
Unit of Measure: EA

0.19 EUR / EA 0.19 EUR 0.19 € excl. VAT

0.19 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
10 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
13,953 EA available on request, fees apply
Special order from vendor stock.

The AN970-3 is a flat, large-area washer for 3/16 in (4.8 mm) bolt-size hardware. Manufactured from carbon steel with cadmium plating, it provides a larger bearing area than a standard AN960 washer.

It is commonly used beneath the bolt head and nut on wooden structures to help distribute clamping load and reduce the risk of surface crushing.

  • Part number: AN970-3
  • Alternate part numbers: 10270-25, 10270-50
  • Material: carbon steel
  • Finish: cadmium plated per QQ-P-416C, Type II, Class 2
  • Outside diameter: 22.2 mm
  • Inside diameter: 5.2 mm
  • Thickness: 1.6 mm
  • Unit of measure: each
Contact Us

Terms and Conditions

Share

Dash No.Bolt SizeO.D.
(in.)		I.D.
(in.)		Thickness
(in.)		Description
33/16.875.203.063Cadmium


Overview

Manufactured of carbon steel, cadmium plated per QQ-P-416C, Type II, Class 2. They provide a greater bearing area than AN960 washers. Used on wooden structures under both the head of the bolt and the nut to prevent crushing the surface.
