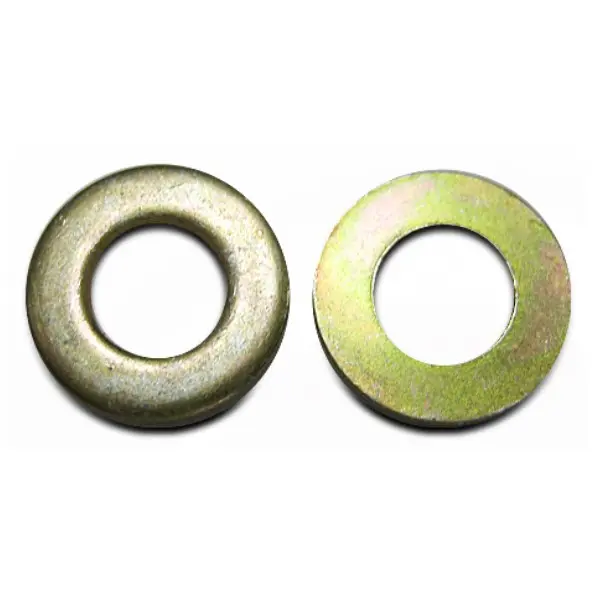

Washer Flat AN960-10L

Washer Flat AN960-10L

https://www.roctexo.com/web/image/product.template/94115/image_1920?unique=678e55d
Part numbers : RX1-AN960-10L , 05858-100 , AN960-10L
Unit of Measure: EA

0.07 EUR / EA 0.07 EUR 0.07 € excl. VAT

0.07 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1,285 EA ready to ship Today
Order before 15:30 CET Today
Up to 27,390 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET Today
3,713 EA available on request, fees apply
Special order from vendor stock.

The AN960-10L is a light-series flat washer for use with nominal 3/16 in (4.8 mm) bolts or screws. It provides a smooth bearing surface beneath a nut or fastener head and may be used where a thinner washer is required for assembly fit-up.

  • Part number: AN960-10L
  • Manufacturer part number: 05858-100
  • Light-series flat washer
  • Nominal fastener size: 3/16 in (4.8 mm)
  • Nominal outside diameter: 11.1 mm
  • Nominal inside diameter: 5.2 mm
  • Nominal thickness: 0.8 mm
  • Unit of measure: each

Please verify the required part number, dimensions and applicable maintenance data before installation.

Contact Us

Terms and Conditions

Share

AN No.Superseding NAS No.Bolt / Screw SizeO.D. (in.)I.D. (in.)Thickness
AN960-10LNAS1149F0332P3/16.438.203.032

Overview

AN960 flat washers are used under hex nuts to provide a smooth bearing surface, as shims to obtain the correct grip length for a bolt and nut assembly, and to adjust the position of AN310 and AN320 castle nuts with respect to drilled cotter pin holes in bolts and clevis pins. Available in regular and light thickness.

Light Series Washers:
Add the letter "L" to dash number to indicate light series. AN960-416L is a light series cadmium plated steel washer for 1/4" dia. bolt.

Reference Chart

Reference Chart
