Eye Bolt Undrilled AN42B-7A

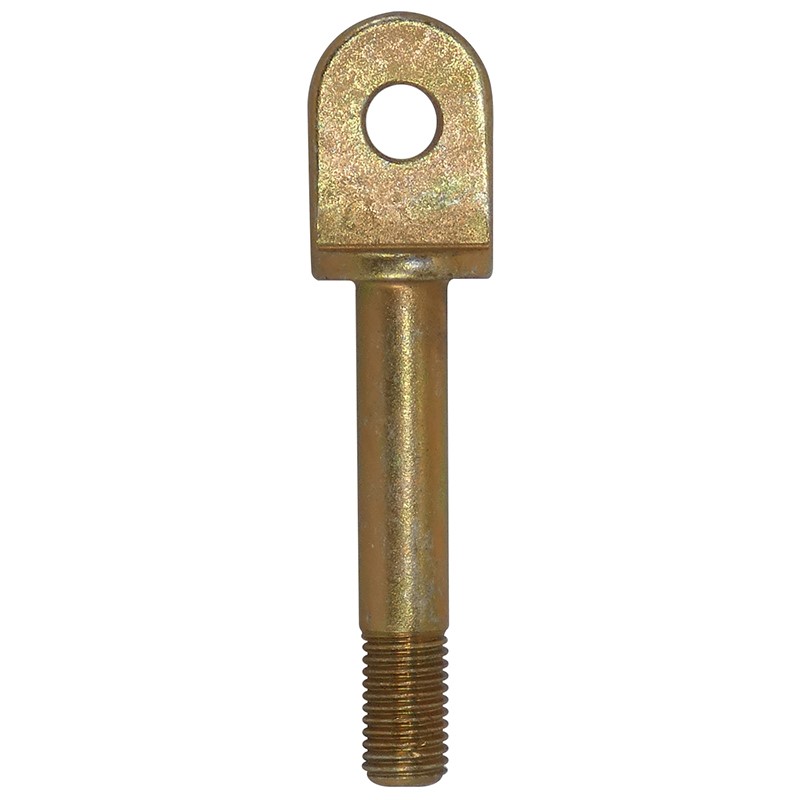

Image for illustration only. It may show a product series rather than the exact product offered.

Eye Bolt Undrilled AN42B-7A

https://www.roctexo.com/web/image/product.template/71114/image_1920?unique=182fd28
Part numbers : RX1-AN42B-7A , 05753-1 , AN42B-7A , AN42B-7A
Unit of Measure: EA

25.05 EUR / EA 25.05 EUR 25.05 € excl. VAT

25.05 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
44 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Airfasco AN42B-7A is an AN-series eye bolt with undrilled threads. It is supplied as an individual fastener for maintenance and procurement requirements where this exact part number is specified.

  • Manufacturer: Airfasco
  • Manufacturer part numbers: AN42B-7A; 05753-1
  • Configuration: Undrilled threads; the “A” suffix identifies the undrilled version.
  • Material and finish: Alloy steel, cadmium plated.
  • Thread: 0.1900-32 UNF-3A
  • Body diameter: 4.72–4.80 mm
  • Head diameter: approximately 11.1 mm
  • Grip length: 12.7 mm
  • Overall length: approximately 23 mm
  • Unit of measure: Each
  • Catalogued weight: 0.005 kg

Please verify the required part number, configuration and applicable maintenance data before installation.

Manufacturer reference: Airfasco AN42B aerospace eye bolts.
