MS20426Ad-5-22 Aluminum Rivets

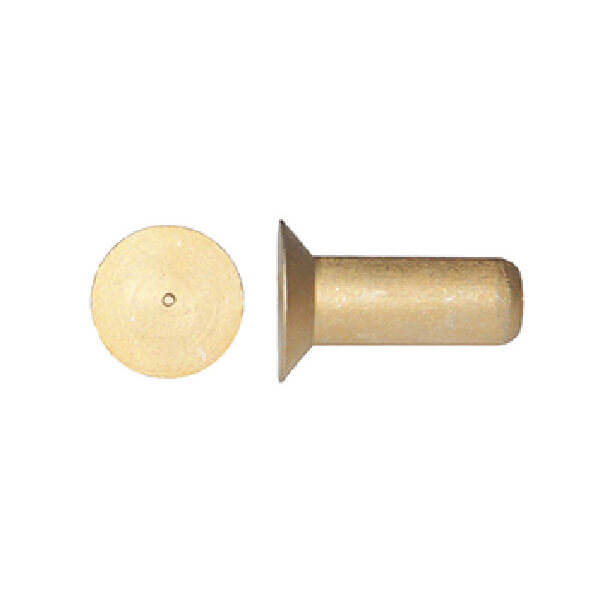

Image for illustration only. It may show a product series rather than the exact product offered.

MS20426Ad-5-22 Aluminum Rivets

https://www.roctexo.com/web/image/product.template/116255/image_1920?unique=39b66ee
Part numbers : RX1-AN426AD-5-22 , MS20426AD-5-22 , AN426AD-5-22
Unit of Measure: LB

34.02 EUR / LB 34.02 EUR 34.02 € excl. VAT

34.02 EUR / LB excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 4.86 LB ready to ship on Monday 2026-11-02
Order before 17:00 CET on Friday 2026-10-30
2.82 LB available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

MS20426AD-5-22 is a solid aluminium rivet with a 100° countersunk head, intended for flush-rivet applications where the surrounding material is prepared with the corresponding countersink.

This AD-series rivet is manufactured from 2117 aluminium and heat treated to the T4 condition. Its nominal size is approximately 4.0 mm diameter × 35 mm length.

  • Manufacturer part number: MS20426AD-5-22
  • Series: MS20426 / AN426
  • Head style: 100° countersunk
  • Material: 2117 aluminium, T4 condition
  • Nominal dimensions: approximately 4.0 mm × 35 mm
  • Unit of measure: lb (0.454 kg)

Please verify the required part number, rivet diameter, grip requirement and installation specification against the applicable maintenance data before purchase and installation.
