AN Bolt AN3H-10A

AN Bolt AN3H-10A

https://www.roctexo.com/web/image/product.template/116237/image_1920?unique=9f1601c
Part numbers : RX1-AN3H-10A , 13336-5 , AN3H-10A
Unit of Measure: EA

0.87 EUR / EA 0.87 EUR 0.87 € excl. VAT

0.87 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
5 EA ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-17
Up to 728 EA ready to ship on Thursday 2026-08-20
Order before 15:30 CET on Monday 2026-08-17
Up to 827 EA ready to ship on Monday 2026-08-24
Order before 15:30 CET on Monday 2026-08-17
866 EA available on request, fees apply
Special order from vendor stock.

The AN3H-10A is a hex-head aircraft bolt featuring a drilled head for safety-wire provision and an undrilled shank. It is identified by manufacturer part number 13336-5.

  • Part number: AN3H-10A
  • Manufacturer part number: 13336-5
  • Drilled bolt head (“H” designation)
  • Undrilled shank (“A” designation)
  • Heat-treated high-strength alloy-steel AN bolt series
  • Cadmium-plated finish
  • Minimum tensile strength: 125,000 psi
  • Unit of measure: each

AN bolt length is conventionally measured from beneath the bolt head to the end of the shank. Confirm the required drawing, maintenance data and applicable installation requirements before use.

Contact Us

Terms and Conditions

Share

Overview

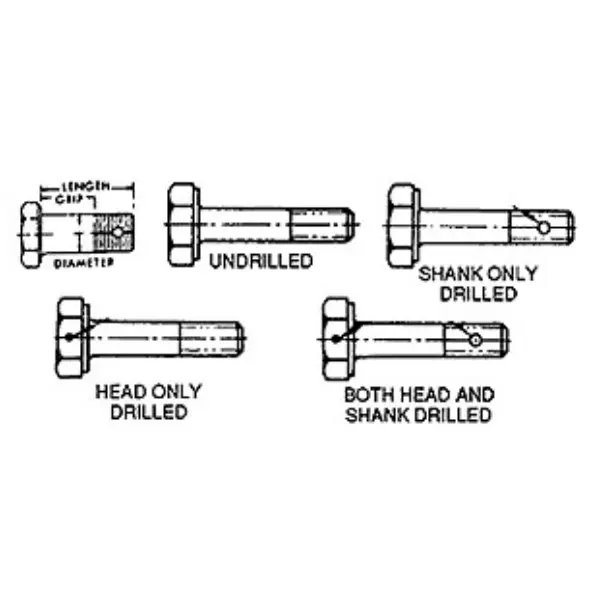

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are center-less ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, & with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after dash number. For bolts with drilled head add letter "H" after AN number. See illustrated examples. The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN call-out.

Drawing

Reference Chart
