Nut Castle AN310-6

https://www.roctexo.com/web/image/product.template/108307/image_1920?unique=b2113df
Part numbers : RX1-AN310-6 , AN310-6 , 19496-10 , AN310-6
Unit of Measure: EA

2.92 EUR / EA 2.92 EUR 2.92 € excl. VAT

2.92 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Available as part of a kit RX1-04-00350
Availability
37 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 745 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET Tomorrow
Up to 1,798 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET Tomorrow
680 EA available on request, fees apply
Special order from vendor stock.

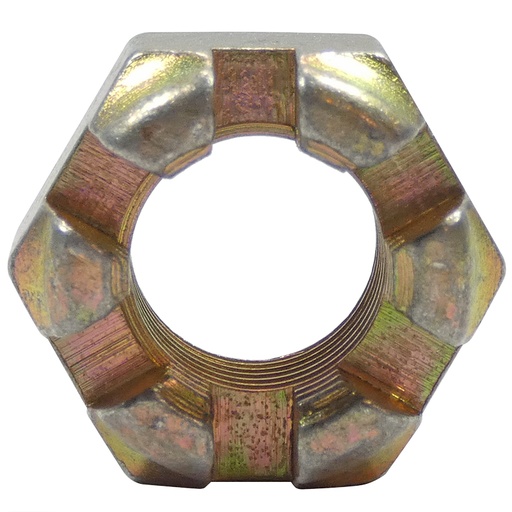

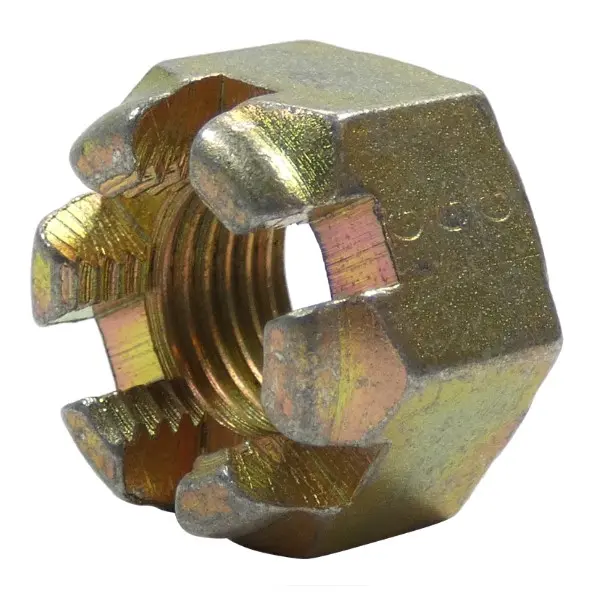

The AN310-6 is a steel castle nut with a 3/8-24 thread. Its castellated slots are intended to accept a cotter pin, providing a positive mechanical locking method when used with a compatible drilled-shank fastener.

  • Part number: AN310-6
  • Manufacturer part number: 19496-10
  • Roctexo part number: RX1-AN310-6
  • Thread size: 3/8-24
  • Material: steel
  • Finish: cadmium plated in accordance with QQ-P-416A, Type II, Class 3
  • Compatible cotter pin reference: AN380-3-3
  • Unit of measure: each

Suitable for maintenance and assembly tasks requiring an AN310-series castellated nut and cotter-pin retention arrangement. Confirm the applicable maintenance data, fastener specification and installation requirements before use.

Contact Us

Terms and Conditions

Share

TypePart No.Thread SizeCotter Pin Size
Cad PlatedAN310-63/8-24AN380-3-3

Overview

Fabricated from steel and cadmium plated per QQ-P-416A, Type II, Class 3. AN310 castle nuts are used with drilled-shank bolts, clevis bolts, eye bolts and studs. The slots in the nut accommodate a cotter pin for safety purposes. The thinner AN320 castellated shear nut, with half the tensile rating of the AN310 nut, is used with clevis bolts and threaded taper pins which are subject to shearing stress only.


Reference Chart
