Nut Castle AN310-5

https://www.roctexo.com/web/image/product.template/59236/image_1920?unique=751600e
Part numbers : RX1-AN310-5 , 19495-10 , 19495-5 , AN310-5 , AN310-5
Unit of Measure: EA

1.94 EUR / EA 1.94 EUR 1.94 € excl. VAT

1.94 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Available as part of a kit RX1-04-00335 Available as part of a kit RX1-04-00350
Availability
40 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 625 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET Tomorrow
108 EA available on request, fees apply
Special order from vendor stock.

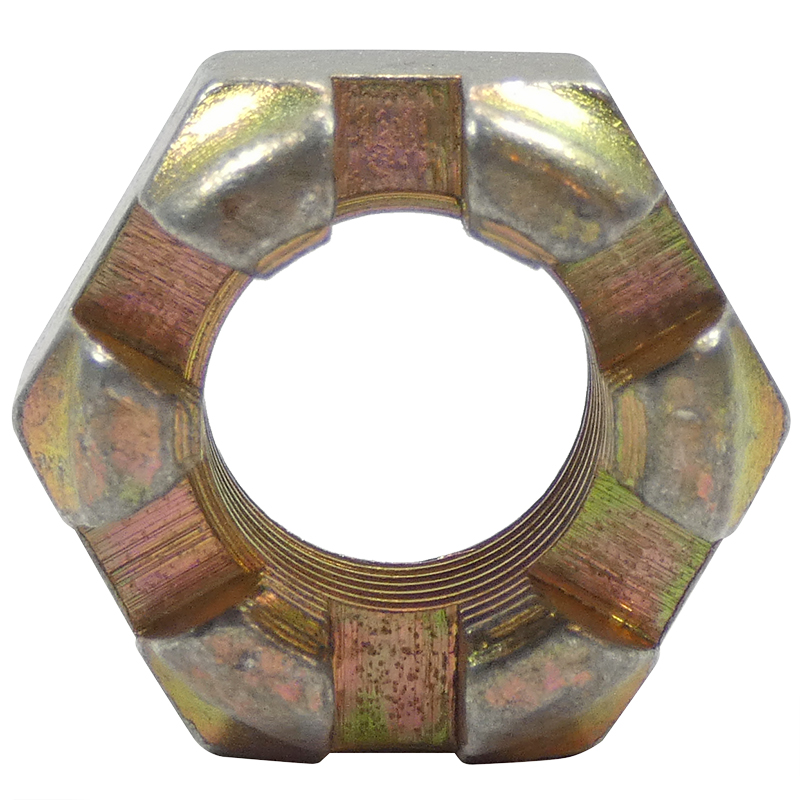

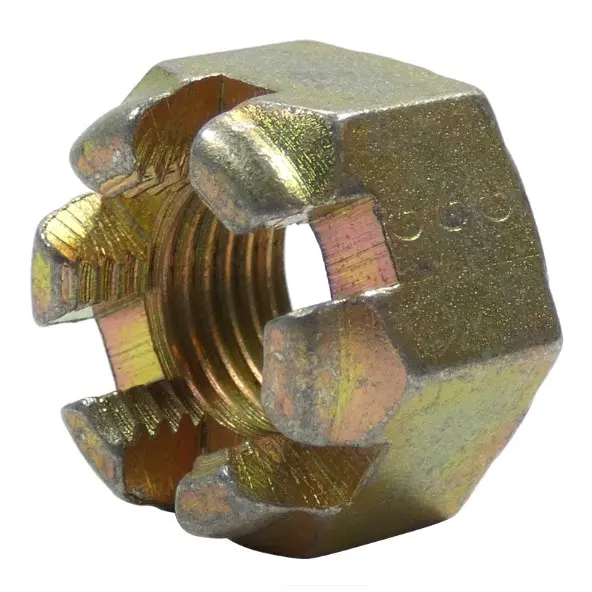

The AN310-5 is a steel castle nut with a 5/16-24 thread. It is cadmium plated in accordance with QQ-P-416A, Type II, Class 3.

Castle slots are designed to accommodate a cotter pin for safetying when used with applicable drilled-shank bolts, clevis bolts, eye bolts or studs.

  • Part number: AN310-5
  • Roctexo reference: RX1-AN310-5
  • Thread size: 5/16-24
  • Material: steel
  • Finish: cadmium plated
  • Additional reference part numbers: 19495-10, 19495-5
  • Unit of measure: each
Contact Us

Terms and Conditions

Share

TypePart No.Thread SizeCotter Pin Size
Cad PlatedAN310-55/16-24

Overview

Fabricated from steel and cadmium plated per QQ-P-416A, Type II, Class 3. AN310 castle nuts are used with drilled-shank bolts, clevis bolts, eye bolts and studs. The slots in the nut accommodate a cotter pin for safety purposes. The thinner AN320 castellated shear nut, with half the tensile rating of the AN310 nut, is used with clevis bolts and threaded taper pins which are subject to shearing stress only.


Reference Chart
