Nut Castle AN310-3

https://www.roctexo.com/web/image/product.template/14837/image_1920?unique=ed328a0
Part numbers : RX1-AN310-3 , 19492-1 , 19492-10 , 19492-5 , 19492-50 , AN310-3 , AN310-3
Unit of Measure: EA

1.88 EUR / EA 1.88 EUR 1.88 € excl. VAT

1.88 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Available as part of a kit RX1-04-00335 Available as part of a kit RX1-04-00350
Availability
32 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
5,453 EA available on request, fees apply
Special order from vendor stock.

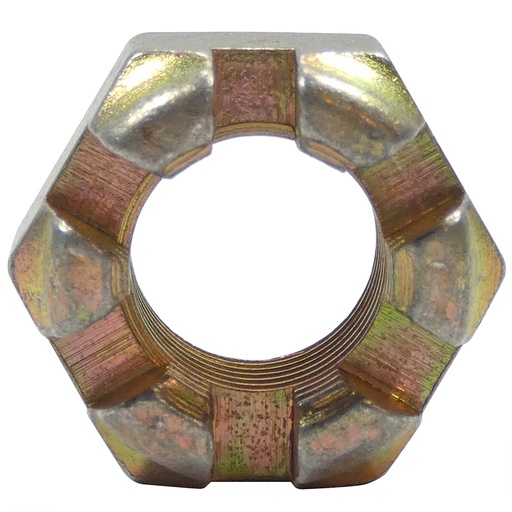

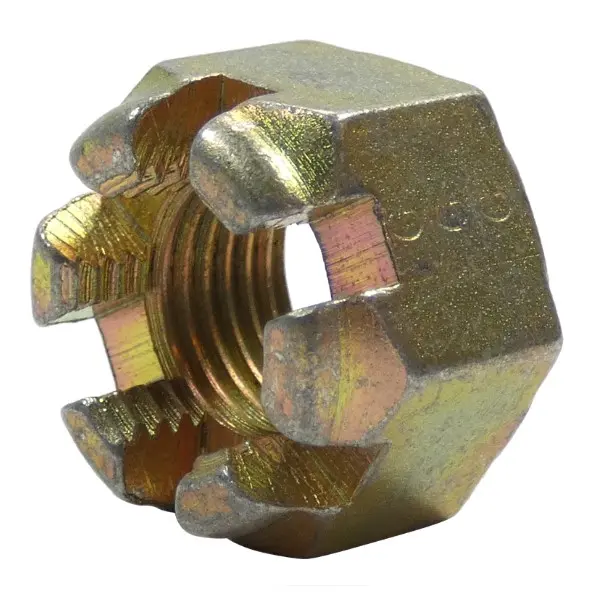

The AN310-3 is a castellated steel nut with a 10-32 thread. Its slotted crown is designed to accept an AN380-2-2 cotter pin, providing a positive locking arrangement when installed with compatible drilled-shank bolts, clevis bolts, eye bolts, or studs.

Constructed from steel with cadmium plating specified in the supplied source context as QQ-P-416A, Type II, Class 3, this castle nut is suited to maintenance and assembly tasks where a cotter-pin-secured fastener is required.

  • Part number: AN310-3
  • Thread size: 10-32
  • Cotter pin reference: AN380-2-2
  • Material: steel
  • Finish: cadmium plated
  • Unit of measure: each
  • Additional manufacturer part numbers: 19492-1, 19492-5, 19492-10, 19492-50

Please verify the applicable maintenance data, fastener configuration, and required locking method before installation.

Contact Us

Terms and Conditions

Share

TypePart No.Thread SizeCotter Pin Size
Cad PlatedAN310-310-32AN380-2-2

Overview

Fabricated from steel and cadmium plated per QQ-P-416A, Type II, Class 3. AN310 castle nuts are used with drilled-shank bolts, clevis bolts, eye bolts and studs. The slots in the nut accommodate a cotter pin for safety purposes. The thinner AN320 castellated shear nut, with half the tensile rating of the AN310 nut, is used with clevis bolts and threaded taper pins which are subject to shearing stress only.
