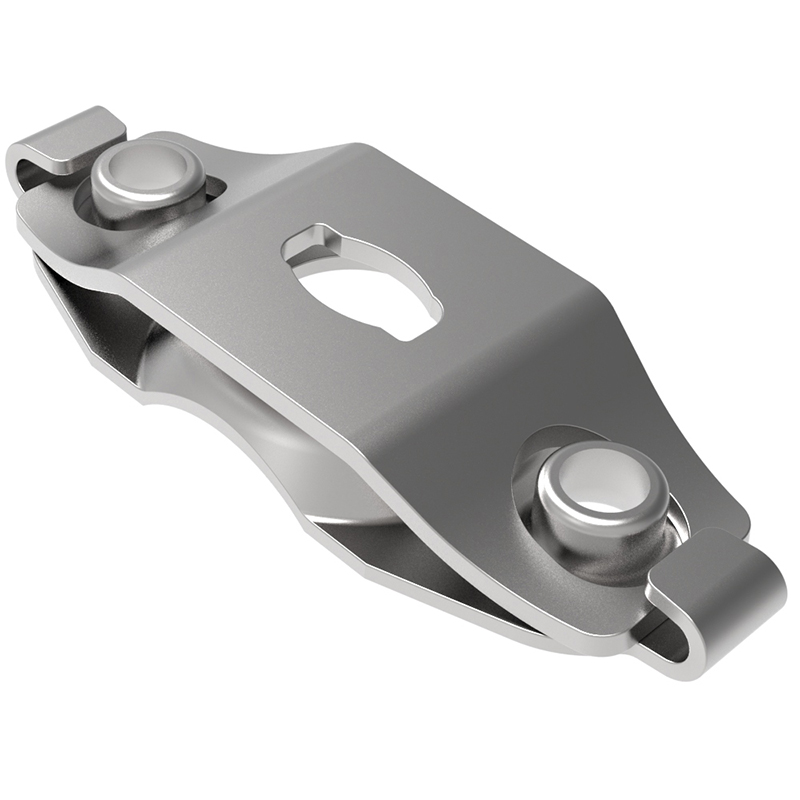

Dac Leafspring Receptacle Rivet Type

Image for illustration only. It may show a product series rather than the exact product offered.

Dac Leafspring Receptacle Rivet Type

https://www.roctexo.com/web/image/product.template/28001/image_1920?unique=d06b28e
Part numbers : RX1-85-35-295-15 , 85-35-295-15 , 85-35-295-15
Unit of Measure: EA

1.21 EUR / EA 1.21 EUR 1.21 € excl. VAT

1.21 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
4 EA ready to ship on Monday 2026-10-12
Order before 15:30 CET on Monday 2026-10-12
Up to 211 EA ready to ship on Thursday 2026-10-15
Order before 15:30 CET on Monday 2026-10-12
Up to 299 EA ready to ship on Monday 2026-10-19
Order before 15:30 CET on Monday 2026-10-12
1,942 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Southco DZUS® Lion 85-35-295-15 is a large-size 85-series rivet-on receptacle for DZUS® quarter-turn fastener installations. Its rivet-on configuration provides the receptacle component used with the corresponding quarter-turn stud arrangement.

  • Manufacturer part number: 85-35-295-15
  • Type: DZUS® Lion quarter-turn receptacle
  • Series: Large Size 85
  • Material: Steel
  • Finish: Zinc immersion coating
  • Installation: Rivet-on; use with 3 mm rivets. The spring should remain free to move after riveting.
  • Approximate overall footprint: 38 × 25.4 mm
  • Approximate installed height: 9.3 mm

For dimensional details and installation information, consult the Southco technical drawing and applicable maintenance data before installation.
