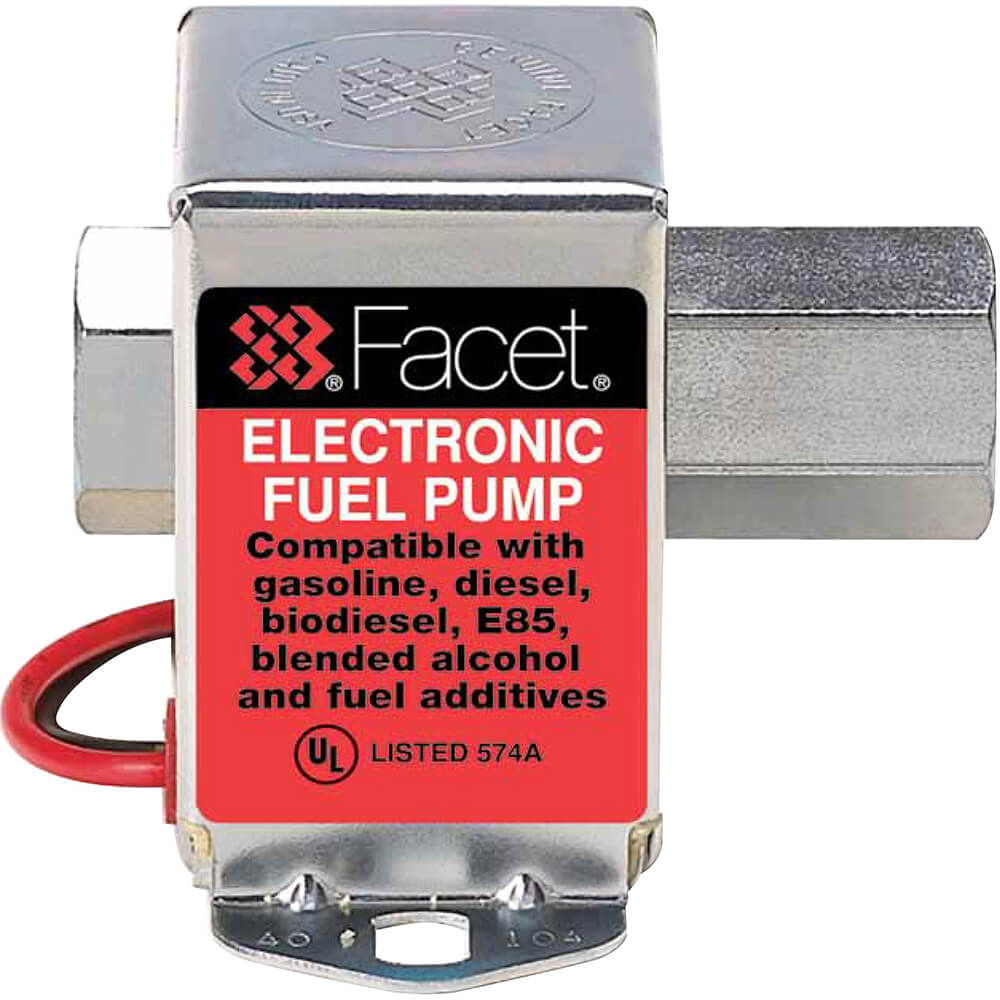

40105 Facet Solid State Fuel Pump

Part numbers : RX1-40105 , 40105N , 40105

Unit of Measure: EA

73.34 EUR / EA 73.34 EUR 73.34 € excl. VAT

73.34 EUR / EA excl. VAT

This combination does not exist.

Up to 11 EA ready to ship on Monday 2026-08-17

Order before 17:00 CET Tomorrow

14 EA available on request, fees apply

Special order from vendor stock.

Add to cart

The Facet Cube solid-state electric fuel pump, manufacturer part number 40105N, is a compact 12 V pump with a solid-state operating design and two-bolt mounting arrangement.

12 V electrical supply
Pressure range: 3.0 to 4.5 psi (approximately 21 to 31 kPa)
Nominal flow: 30 US gal/h (approximately 114 L/h)
Fitting connection: 1/8-27 internal thread
Minimum dry lift: 305 mm
Two-bolt mounting

Important approval notice: This pump is not EASA/FAA approved and is not intended for aircraft applications. Refer to the applicable 40105 installation instructions and the equipment manufacturer’s requirements before selection or installation.

Documents

40105 Install Instractions (Spanish / French)

40105 Install Instructions (English)

Terms and Conditions

Facet No.	Volts	PSI Max-Min	GPH	Fitting Size	Lift Min. Dry	Check Valve	Positive Shut-Off Valve	Description	Part No.
40105	12	4.5-3.0	30	1/8- 27 INT	12"	N	N	Facet Solid State	40105

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

These pumps measure less than 3" in any direction and weigh only 18 oz. Fuel is supplied as soon as the ignition is turned on so the engine will start faster at colder temps. Built-in pressure relief prevents flooding and assures fast re-starts on hottest days. The all-steel plated case is water tight. Mounts with two bolts. For best results, mount the pump close to the fuel tank and below the liquid level.

The tank is self-priming to 12" to 36" Lift min dry. Standard 12 V models require only 1 amp at max. delivery. Many models are available, but these are the ones recommended by Rutan Aircraft Factory, Stoddard Hamilton and many other aircraft designers. All of the pumps shown feature the all nylon valve and plunger as specified by Rutan Aircraft in the Canard Pusher newsletter.

Features

12 - 84 inches minimum dry lift
6 - 50 GPH
1 - 15 PSI
Transient Protection
State of the art Electronics
Sealed Electronics
Reverse Polarity protection
Built in check valve
ELV Compliant
1.6 amp average
Self Priming and Self Regulating
18 ounces and 3 inches

Benefits

Fuel Compatibility:

All models of the Facet® CUBE® Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Solid State Reliability:

Proven on thousands of original equipment applications. No electrical contacts. No bearings or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric fuel pumps.

Easy to Install:

Two-bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.

Eliminates Vapor Lock:

When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.
