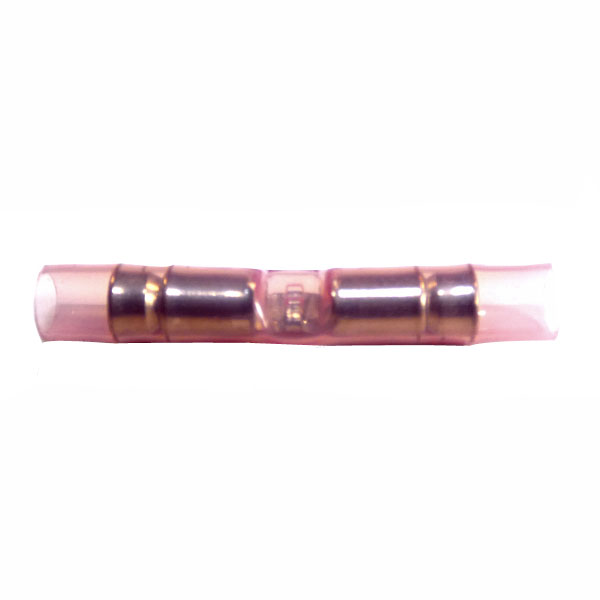

TE 320559 Window Type Butt Splice 16 22 Awg Red

TE 320559 Window Type Butt Splice 16 22 Awg Red

https://www.roctexo.com/web/image/product.template/102146/image_1920?unique=af005f2
Part numbers : RX1-320559 , 320559 , 320559
Unit of Measure: EA

1.02 EUR / EA 1.02 EUR 1.02 € excl. VAT

1.02 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
234 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 17,353 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET Tomorrow
Up to 18,770 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET Tomorrow
74,441 EA available on request, fees apply
Special order from vendor stock.

The TE Connectivity PIDG 320559 is a red translucent, fully insulated butt splice for joining 22–16 AWG (0.3–1.42 mm²) stranded discrete wire. Its closed-barrel copper construction has tin plating, nylon insulation support and a serrated contact area.

This non-sealable inline splice is supplied as an individual electrical termination component for wiring assembly and maintenance tasks where the specified wire size and termination design are required.

  • Manufacturer: TE Connectivity
  • Manufacturer part number: 320559
  • Series: PIDG
  • Splice type: Butt splice
  • Wire range: 22–16 AWG (0.3–1.42 mm²)
  • Insulation: Fully insulated red translucent nylon
  • Conductor material: Copper, tin plated
  • Barrel: Closed, with insulation support
  • Sealable: No

For the manufacturer product drawing and technical documentation, refer to the TE Connectivity 320559 product page.

Contact Us

Terms and Conditions

Share

Overview

MS25181 Nylon Butt Splice Self Insulated Window - Red.

16 - 22 AWG
