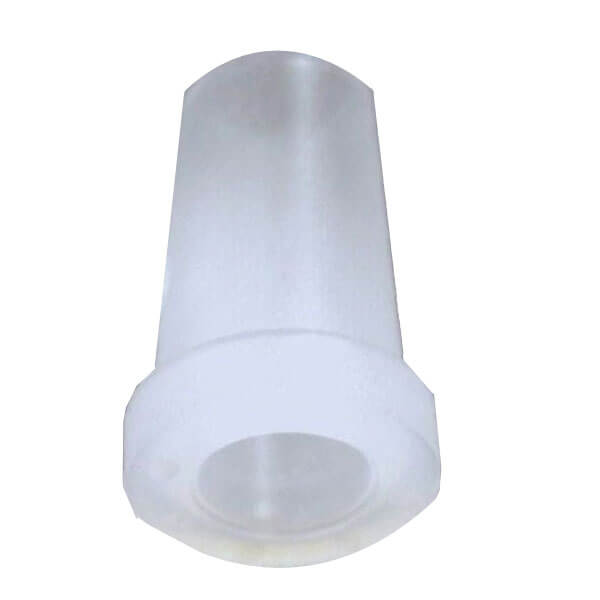

Nylo-Seal Fittings 259-N 04

Part Number(s): 259-N04

0.62 € 0.62 EUR 0.62 € Tax Excluded

6.78 kr Tax Excluded

This combination does not exist.

Add to cart

Terms and Conditions

Unit of Measure Name: Units
Internal Reference: RX1-259-N04

Tube OD	A	D	Part Number
1/4	0.375	0.125	259-N04

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Reference Chart

259-P CAP,

259-N Insert (Nylon)

Tube O.D.	A	D
1/4	3/8	1/8
3/8	7/16	13/64

261-N Nut and

Sleeve Assembly

Tube O.D.	Thd.	A	C
1/4	7/16-20	15/32	9/16
3/8	5/8-20	37/64	3/4

262-N Union

Tube O.D.	A	B	C	D	E
1/4	1-25/64	63/64	5/8	7/32	15/32
3/8	1-21/32	1-1/4	13/16	23/64	19/32

264-N Union Tee

Tube O.D.	A	B	D	E
1/4	1-9/64	47/64	7/32	15/32
3/8	1-11/64	31/31	11/32	19/32

266-N Female Connector

Tube O.D.	Pipe Thread	A	B	C	D	E
1/4	1/8	1-9/64	15/16	9/16	7/32	9/16
1/4	1/4	1-5/16	1-7/64	11/16	7/32	47/64
3/8	1/4	1-27/64	1-7/32	11/16	11/32	3/4
3/8	3/8	1-27/64	1-7/32	13/16	11/32	3/4

265-N Elbow Union

Tube O.D.	A	B	D	E
1/4	1-1/64	13/16	7/32	3/8
3/8	1-5/32	15/16	11/32	7/16

268-N Male Connector

Tube O.D.	Pipe Thd.	A	B	C	D	E
1/4	1/8	1-13/64	1	5/8	15/64	15/32
1/4	1/4	1-25/64	1-3/16	5/8	15/64	11/16
3/8	1/4	1-17/32	1-21/64	13/16	5/16	19/32
3/8	3/8	1-19/32	1-25/64	13/16	11/32	19/32

269-N Male Elbow

Tube O.D.	Pipe Thd.	A	B	D	E	F
1/4	1/8	1-1/64	13/16	7/32	3/8	27/32
1/4	1/4	1-1/64	13/16	13/32	3/8	1-1/32
3/8	1/4	1-9/64	15/16	5/16	7/16	1-1/32
3/8	3/8	1-9/64	15/16	11/32	7/16	1-3/32

271-N Male Run Tee

Tube O.D.	Pipe Thd.	A	B	D	E	F
1/4	1/8	59/64	21/32	7/32	15/32	3/4
1/4	1/4	59/64	13/32	7/32	15/32	29/32
3/8	1/4	1-5/32	61/64	5/16	19/32	1-1/16
3/8	3/8	1-3/16	61/64	23/64	19/32	1-7/64

272-N Male Branch Tee

Tube O.D.	Pipe Thd.	A	B	D	E	F
1/4	1/8	15/16	47/64	7/32	15/32	3/4
1/4	1/4	15/16	47/64	7/32	15/32	13/16
3/8	1/4	1-11/64	31/32	5/16	19/32	1-1/16
3/8	3/8	1-11/64	31/32	23/64	19/32	1-7/64

282-N Bulkhead Union

Tube O.D.	Pipe Thd.	A	B	C	D	E	F	G
1/4	7/16-20	1-57/64	1-31/64	5/8	7/32	15/32	5/8	5/16
3/8	5/8-20	2-1/4	1-53/64	13/16	11/32	19/32	7/8	3/8

*Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing.
