Cleveland Bleeder Cap 183-00100

Cleveland Bleeder Cap 183-00100

Part Number(s): 183-00100

7.37 € 7.37 EUR 7.37 € Tax Excluded

80.76 kr Tax Excluded

This combination does not exist.

Documents

Cleveland Application Data

Cleveland Wheels & Brakes Product Catalog

Terms and Conditions

Unit of Measure Name: Units
Internal Reference: RX1-183-00100

FIG	Spruce PN	Cleveland PN	Descripiton
13	183-00100	183-00100	Cap Bleeder

Overview

Model No.30-63A used with wheel 40-97A.
P/N 30-63A

Reference Chart

Assembly No. & qty. per assembly

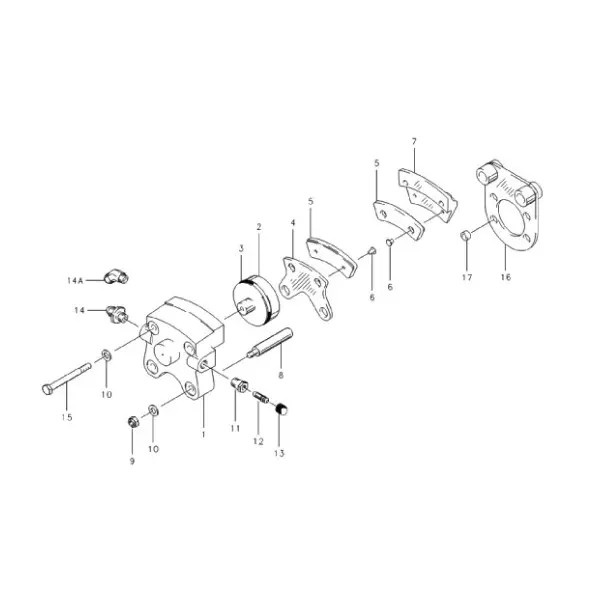

FIG	Part No.	Cleveland No.	Description	30-56	30-56A	30-63	30-63A	30-63D
	091-02200	091-02200	Cylinder Assy.	--	--	1	1	1
1	061-01900	061-01900	Cylinder	1	1	1	1	1
2	062-01600	062-01600	Piston	1	1	1	1	1
3	101-05200	101-05200	"O" Ring	1	1	1	1	1
	073-01100	073-01100	Press. Plate Assy.	1	1	1	1	1
4	063-01200	063-01200	Plate-Press.	1	1	1	1	1
5	66-105	66-155	Lining	1	1	1	1	1
6	105-00200	105-00200	Rivet - Cleveland 9/32" Long	2	2	2	2	2
	074-01000	074-01000	Back Plate Assy.	1	1	1	1	1
7	064-01500	064-01500	Plate-Back	1	1	1	1	1
8	069-00400	069-00400	Bolt-Anchor	2	2	2	2	2
9	AN365-428A	094-10300	Nut	2	2	2	2	2
10	AN960-416L	095-10200	Washer	4	4	4	4	4
11	081-00100	081-00100	Seat-Bleeder	1	1	1	1	1
12	079-00300	079-00300	Screw Bleeder	1	1	1	1	1
13	183-00100	183-00100	Cap-Bleeder	1	1	1	1	1
14	AN823-4D	104-00500	Fitting Tube	1	1	--	--	--
15	LP4-17AM	103-11600	Bolt-Lock	2	2	2	2	2
16	075-03700	075-03700	Torque Plate Assy.	--	1	1	1	1
17	145-01000	145-01000	Bushing	2	--	2	2	2
