Dromight Rudder Lock For Vans RV-14 & RV-14A

Image for illustration only. It may show a product series rather than the exact product offered.

Dromight Rudder Lock For Vans RV-14 & RV-14A

https://www.roctexo.com/web/image/product.template/135993/image_1920?unique=c6e9795
Part numbers : RX1-13-25747 , DM-RLVRV14 , 13-25747
Unit of Measure: EA

283.93 EUR / EA 283.93 EUR 283.93 € excl. VAT

283.93 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 2 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
1 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

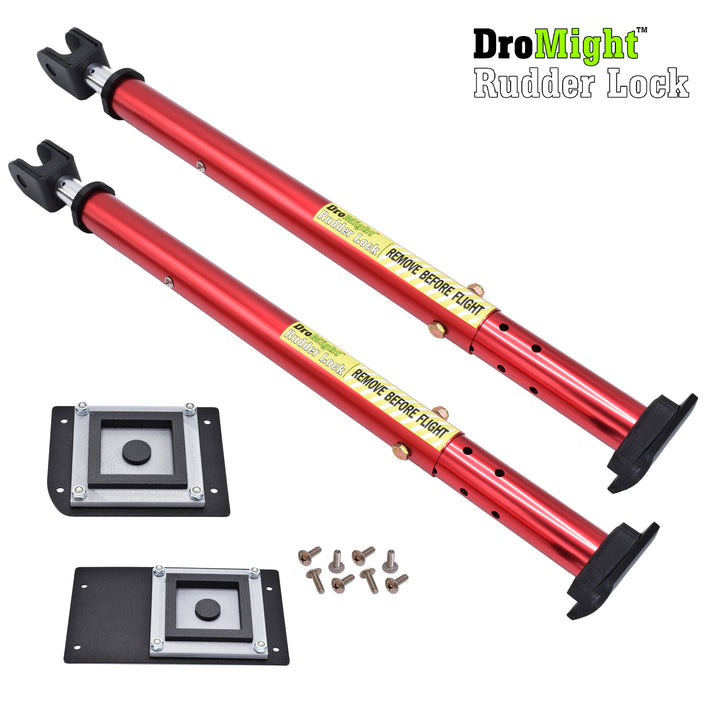

The DroMight™ Rudder Lock is a dual, tension-bearing rudder locking system for Van’s RV-14 and RV-14A aircraft. Designed to be fitted and used from inside the cockpit while the aircraft is parked, it helps restrain rudder-pedal movement during ground parking.

Manufacturer part number: DM-RLVRV14

  • Specific application: Van’s RV-14 and RV-14A.
  • Dual adjustable locking tubes with permanently fitted base plates.
  • Main tube structure manufactured from 6063-T5 aluminium tubing.
  • Tension/compression assembly incorporates a steel tip, CNC-machined aluminium piston, stainless-steel compression spring and CNC-machined aluminium backstop pin.
  • Published length: 489 mm.
  • Published component weights: base plates 169 g; locking tubes 387 g.
  • Installation documentation identifies two red anodised locking tubes, two black anodised base plates and eight AN526C832R7 screws as kit contents.

Follow the supplied installation instructions and include removal and stowage of both rudder locks in the aircraft pre-flight procedure before flight.
