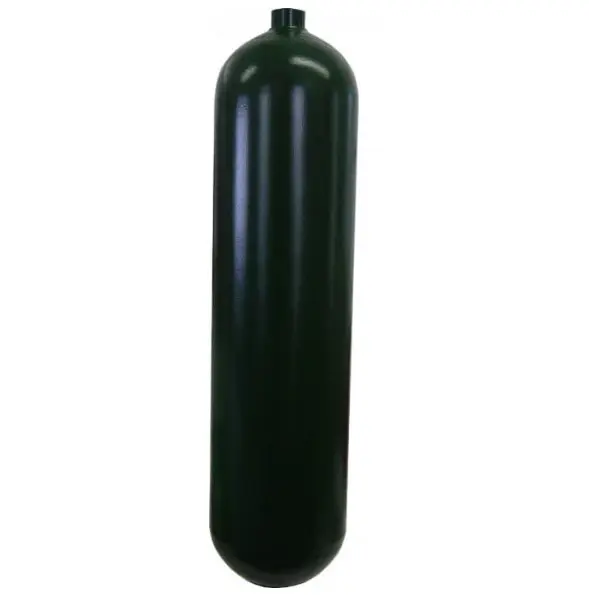

Aerox N23D-6084-33 Oxygen Cylinder

Aerox N23D-6084-33 Oxygen Cylinder

https://www.roctexo.com/web/image/product.template/74304/image_1920?unique=ad50a49
Part numbers : RX1-13-17961 , 4110-115-3 , N23D-6084-33 , 13-17961
Unit of Measure: EA

2653.85 EUR / EA 2653.85 EUR 2,653.85 € excl. VAT

2653.85 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Aerox 4110-115-3 is a steel aviation oxygen cylinder for oxygen-system maintenance and replacement requirements. It is also identified by manufacturer reference N23D-6084-33 / 6084-33.

  • Aerox part number: 4110-115-3
  • Alternate manufacturer reference: N23D-6084-33 / 6084-33
  • Nominal oxygen capacity: 76 cu ft
  • Cylinder construction: 4130 steel
  • Cylinder designation: DOT 3HT
  • Service pressure: 1,850 psi (approximately 128 bar)
  • Connection thread: 1 in NPT
  • Cleaned for oxygen service

Please confirm the required part number, installation configuration and applicable approved maintenance data before installation or return to service.

Relevant documentation: Aerox PMA Cylinder Flier.

Contact Us

Terms and Conditions

Share

Model No.HeightDiameterWeightCapacity (Oxygen)Part Number
4110-115-329.50 - 30.00”7.13 - 7.37”22.45 Lbs Max76 Cu. Ft.13-17961

Overview

4130 Steel Cylinder per DOT 3HT and TC-3HTM.

Cylinders are cleaned for oxygen service.

Listed Cylinders are PMA’d for installation in Aircraft listed in PQ2091NE Supplements 2 & 3.

Features

  • Service Pressure: 1850 PSI
  • Note: Cylinders are cleaned for oxygen service.
  • Maintenance: 3 year Hydro-Static Test. 24 year service life.

Specifications

  • Thread: 1.00” NPT
