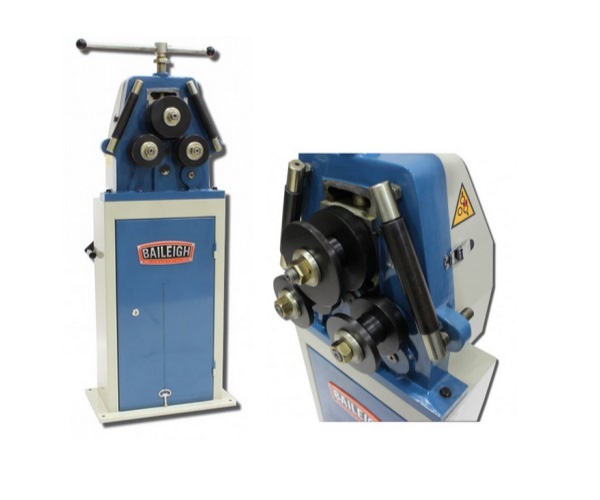

Baileigh Man Roll Bender M10

The Baileigh R-M10 is a manually powered roll bender designed for forming complete circles and curved profiles. Its open-face configuration supports full-circle rolling, while the reduction gearbox helps reduce operator effort during bending.

Manufacturer part number: 1006846

• Manual drive with reduction gearbox and manual roll adjustment
• Open-face design for rolling complete rings
• Segment rolls supplied for selected flat bar, angle iron and square-tube forming
• Hardened rolling shafts operating on bronze bushings
• Precision-machined cast-steel head
• Base with integrated storage cabinet

Manufacturer-stated mild-steel capacity:

• Round tube: up to 31.8 mm outside diameter with approximately 2.0 mm wall thickness
• Pipe: 1 in Schedule 40
• Additional profile capacities apply for selected square, round, flat-bar and angle-iron sections; suitability depends on material characteristics, bend radius and tooling.

Refer to the Baileigh R-M10 operating manual for installation, operation, tooling and safety requirements.
