S4-2 Race Removal Tool

Image for illustration only. It may show a product series rather than the exact product offered.

S4-2 Race Removal Tool

https://www.roctexo.com/web/image/product.template/115003/image_1920?unique=995282a
Part numbers : RX1-12-17602 , 12-17602
Unit of Measure: EA

185.04 EUR / EA 185.04 EUR 185.04 € excl. VAT

185.04 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 5 EA ready to ship on Monday 2026-09-28
Order before 17:00 CET on Friday 2026-09-25

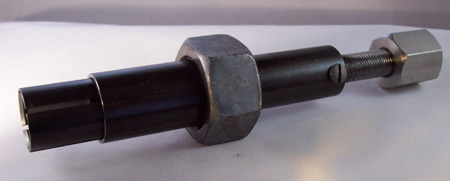

The S4-2 Race Removal Tool is a specialised maintenance tool designed for removal of the S4 magneto drive-end inner race.

It is used in conjunction with a standard bearing puller. The split gripper ring fits behind and around the race, then is retained in the puller ring by two opposing set screws. A groove in the puller ring provides the attachment point for the bearing-puller arms.

  • Roctexo part number: RX1-12-17602
  • For S4 magneto drive-end inner-race removal
  • Requires a standard bearing puller for use
  • Split gripper-ring and puller-ring arrangement
  • Unit of measure: each

Review the applicable installation drawing before use and ensure the tool is correctly seated on the race before applying pulling force.
