Nut Saf-T-Blok

Image for illustration only. It may show a product series rather than the exact product offered.

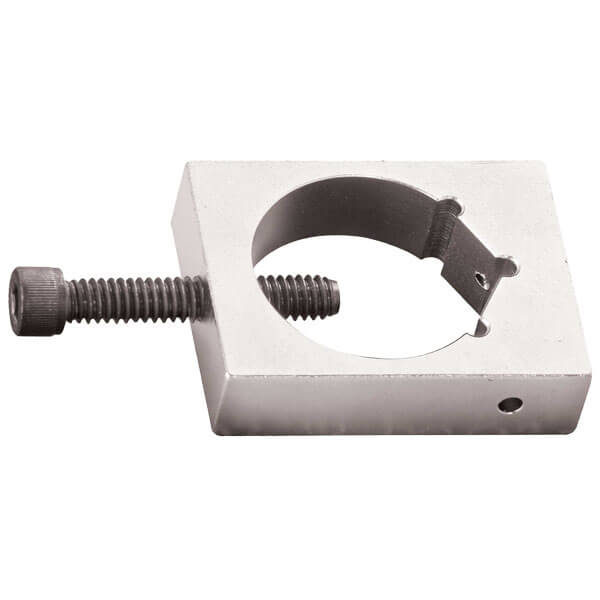

Nut Saf-T-Blok

https://www.roctexo.com/web/image/product.template/70353/image_1920?unique=182fd28
Part numbers : RX1-12-15349 , 12-15349
Unit of Measure: EA

36.22 EUR / EA 36.22 EUR 36.22 € excl. VAT

36.22 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 6 EA ready to ship on Thursday 2026-10-29
Order before 15:30 CET Tomorrow
Up to 7 EA ready to ship on Monday 2026-11-02
Order before 15:30 CET Tomorrow
16 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Nut Saf-T-Blok is a compact holding aid for drilling safety-wire holes through hex nut or bolt-head flats across the diagonal.

Place the nut or bolt head in the V-groove, secure it with the holding screw, then drill and deburr as required. The tool accepts hex nuts or bolt heads up to approximately 19 mm diameter.

  • Supports diagonal safety-wire hole drilling in hex nuts and bolt heads
  • V-groove positioning with screw retention
  • Accepts sizes up to approximately 19 mm
  • Supplied as one each

Roctexo part number: RX1-12-15349.

Contact Us
Orders with purchased items below 100.00 € incur a small order fee of 10.00 €. Both amounts exclude VAT. Shipping, other fees and core deposits do not count towards the limit.

Terms and Conditions

Share

Overview

Designed to enable safety wire holes to be drilled through the head of bolts or through nuts, across the diagonal. Designed to accept up to 3/4 inch diameter nut. Easy to use. Nut Saf-T-Blok requires that the nut or bolt be placed into the "V" groove, tighten down the holding screw, drill and deburr.

Note: Used for HEX Bolts: AN/JIC Fittings.

Features

  • Easily drill safety wire holes in bolt heads and nuts across the diagonal.
  • Accepts up to 3/4 inch diameter nuts or bolt heads.
  • Simply place the bolt head or nut into the vee groove, tighten down the holding screw, then drill and de burr.
  • 1/16 inch or a 5/64 inch cobalt drill recommended
