Inst Panel Layout Template

Image for illustration only. It may show a product series rather than the exact product offered.

Inst Panel Layout Template

https://www.roctexo.com/web/image/product.template/74115/image_1920?unique=f3dd14a
Part numbers : RX1-12-14600 , 12-14600
Unit of Measure: EA

33.33 EUR / EA 33.33 EUR 33.33 € excl. VAT

33.33 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 17 EA ready to ship on Thursday 2026-10-15
Order before 16:00 CET on Tuesday 2026-10-13
Up to 27 EA ready to ship on Monday 2026-10-19
Order before 16:00 CET on Tuesday 2026-10-13
17 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

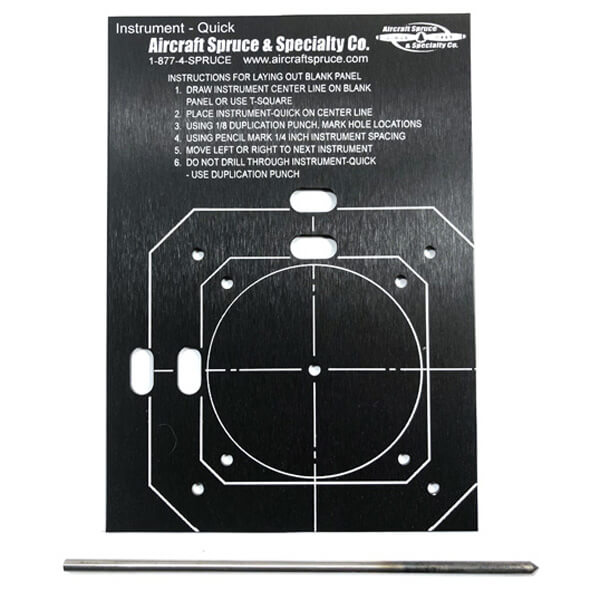

This instrument panel layout template helps position instrument openings and mounting-screw holes during panel layout work.

  • Designed for 2-1/4 in and 3-1/8 in diameter instruments.
  • Supports accurate positioning of instrument holes and associated mounting-screw holes.
  • Includes a transfer punch for marking screw-hole centres.
  • Instructions included.

Supplied as one each. Roctexo part number: RX1-12-14600.
