Swaging Tool 1-Sc With Cutter

Image for illustration only. It may show a product series rather than the exact product offered.

Swaging Tool 1-Sc With Cutter

https://www.roctexo.com/web/image/product.template/93412/image_1920?unique=e9fdf29
Part numbers : RX1-12-12400 , 1-SC , ASS-12-12400 , 12-12400
Unit of Measure: EA

235.07 EUR / EA 235.07 EUR 235.07 € excl. VAT

235.07 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

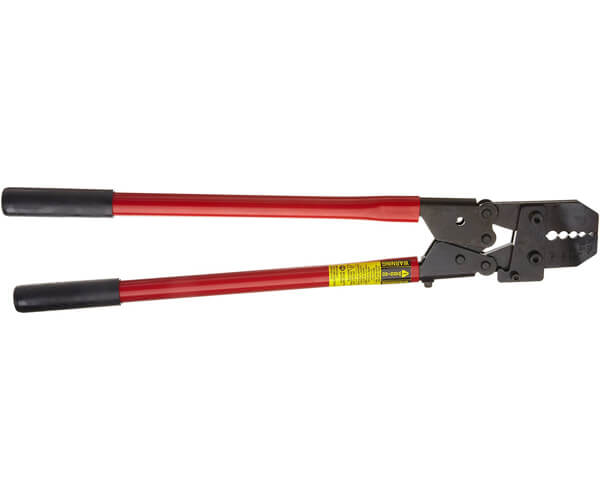

The Locoloc® No. 1-SC is a multi-cavity hand cable swaging tool with an integrated cutter for cable assembly work. It is designed for swaging copper and aluminium oval and stop sleeves in a range of commonly used sizes.

  • Manufacturer part number: 1-SC
  • Swages 1/16, 3/32, 1/8, 5/32 and 3/16 oval and stop sleeves, plus 7/32 stop sleeves
  • Integrated cutter for aircraft-quality steel cable up to 7/32 diameter
  • Eleven sleeve-size swaging functions
  • Supplied with a Locoloc Go/No-Go gauge for checking aluminium, copper and stainless-steel sleeve swaging, plus a parts list
  • Approximate length: 660 mm
  • Approximate weight: 2.9 kg

A practical hand-operated tool for maintenance workshops and cable fabrication tasks where the specified sleeve sizes are required.

Contact Us

Terms and Conditions

Share

Overview

Locoloc® No. 1-SC multi cavity hand cable swaging tool – Designed for swaging copper and aluminum 1/16, 3/32, 1/8, 5/32 and 3/16 oval and stop sleeves, plus 7/32 stop sleeves, total of 11 sizes plus the ability to cut up to 7/32 diameter aircraft quality steel cable.

A multi cavity hand cable swaging tool with a dozen functions. 26 inches long, weighs 6.5 pounds.

Parts list included with each cable swaging tool.

To assure proper swaging of Locoloc® aluminum, copper and stainless steel sleeves there is a Locoloc “Go” “No Go” gauge with each cable swaging tool.
