Lever Switch # 12-103

Lever Switch # 12-103

https://www.roctexo.com/web/image/product.template/81328/image_1920?unique=2e0bb36
Part numbers : RX1-12-103 , 2FC53-73/TAB , 2FC53-73/TABS , 12-103
Unit of Measure: EA

11.18 EUR / EA 11.18 EUR 11.18 € excl. VAT

11.18 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 6 EA ready to ship on Monday 2026-08-10
Order before 17:00 CET Today
Up to 18 EA ready to ship on Thursday 2026-08-13
Order before 17:00 CET Today
20 EA available on request, fees apply
Special order from vendor stock.

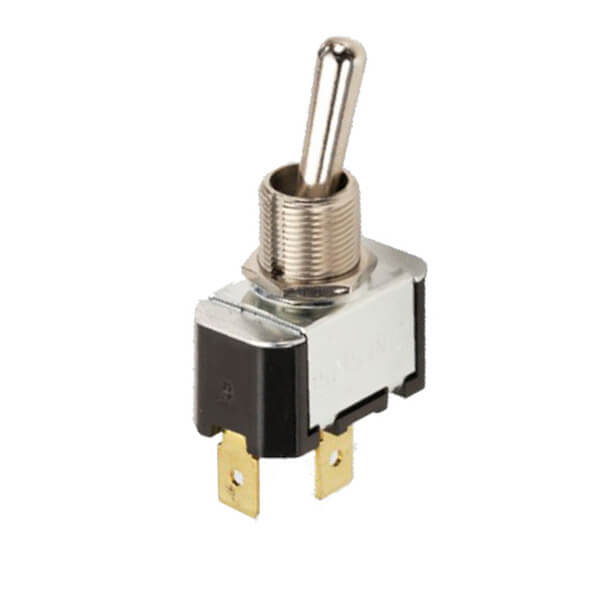

The Carling Technologies 2FC53-73/TABS is an F-Series panel-mount lever toggle switch with a single-pole, double-throw (SPDT) ON-OFF-ON switching function. It is supplied with 6.35 mm quick-connect tab terminals for straightforward electrical connection.

  • Manufacturer part number: 2FC53-73/TABS
  • Alternate manufacturer part number: 2FC53-73/TAB
  • Switch configuration: SPDT, ON-OFF-ON
  • Panel mounting: threaded bushing; 12.7 mm panel hole
  • Terminals: 6.35 mm quick-connect tabs
  • Rated electrical load: 15 A at 125 VAC; 10 A at 250 VAC
  • Non-illuminated metal lever actuator

Suitable for panel-mounted electrical control installations where this switch configuration and rating are specified. Confirm the installation requirements and applicable approval status before use in an aircraft or other regulated application.
