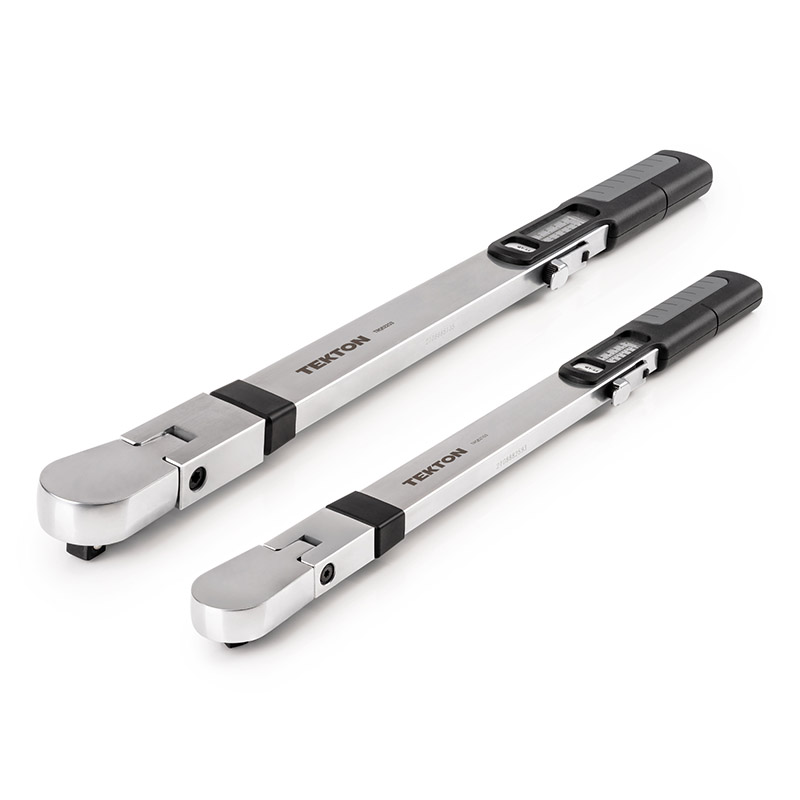

TEKTON - 1/2 Inch Drive 72-Tooth Split Beam Torque Wrench (40-250 Ft-Lb) TRQ62203

The TEKTON TRQ62203 is a 1/2 in drive, 72-tooth flex-head split beam torque wrench for controlled clockwise tightening. Its 40–250 ft-lb torque range and 5 ft-lb adjustment increment support workshop and maintenance tasks requiring repeatable mechanical torque application.

The split-beam design uses a thumbscrew adjustment and locking cover to set and retain the selected torque value. A mechanical click provides torque feedback, while the 10° flex head can assist with access around nearby obstructions. The 72-tooth ratchet provides a 5° swing arc.

• Manufacturer part number: TRQ62203
• Drive size: 1/2 in
• Torque range: 40–250 ft-lb
• Measuring direction: clockwise
• Minimum increment: 5 ft-lb
• Torque accuracy: within ±4% clockwise, as stated by the manufacturer
• 72-tooth ratchet with 5° swing arc
• 10° flex head
• Mechanical click feedback
• Overall length: approximately 579 mm
• Supplied with case, product manual and certificate of calibration

The manufacturer states that this tool meets or exceeds ASME B107.300-2021. For correct operation, handling and maintenance instructions, consult the TEKTON Split Beam Torque Wrench Product Manual.
