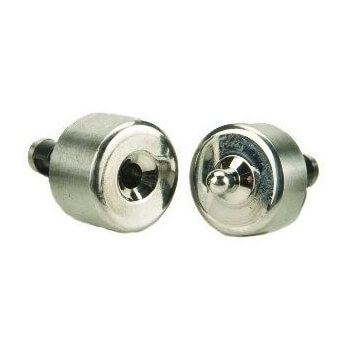

Dimple Die Set #6 Male/Female

Part numbers : RX1-12-05535 , 10136 , 12-05535

Unit of Measure: EA

This combination does not exist.

Up to 6 EA ready to ship on Thursday 2026-08-27

Order before 16:00 CET Tomorrow

Up to 9 EA ready to ship on Monday 2026-08-31

Order before 16:00 CET Tomorrow

8 EA available on request, fees apply

Special order from vendor stock.

Male/female spring-back dimple die set for forming 100° dimples in sheet metal for #6 screw installations using AN426 countersunk fasteners.

Manufacturer part number: 10136
Roctexo part number: RX1-12-05535
#6 screw size (approximately 3.3 mm)
100° dimple profile
Stainless-steel construction
3/16 in (approximately 4.8 mm) shaft for use with compatible pneumatic or hand squeezers

The spring-back die design is intended to help reduce sheet-metal deflection during dimpling. Supplied as a male and female die set.
