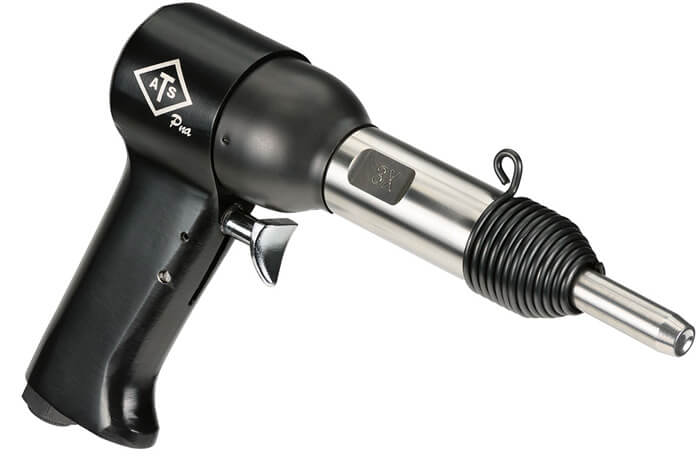

ATS 3X Pro Rivet Gun

Image for illustration only. It may show a product series rather than the exact product offered.

ATS 3X Pro Rivet Gun

https://www.roctexo.com/web/image/product.template/89936/image_1920?unique=678ebe0
Part numbers : RX1-12-04858 , ATS-3X , 12-04858
Unit of Measure: EA

210.81 EUR / EA 210.81 EUR 210.81 € excl. VAT

210.81 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The ATS Pro 3X Rivet Gun is a pneumatic riveting tool for controlled installation of solid rivets. Its redesigned throttle valve provides variable power control to support tapping, swelling and final driving during riveting operations.

Manufacturer part number: ATS-3X

  • 3X rivet gun with 2,160 blows per minute
  • Rated rivet capacity: up to 4.8 mm aluminium
  • Accepts 10.2 mm (.401) shank rivet sets and attachments
  • Approx. 165 mm overall length and 73 mm stroke
  • Operating pressure: 6.2 bar; air consumption: 82 L/min
  • 1/4 NPT air inlet
  • Non-slip powder-coated finish
  • Supplied with Beehive and Mechaid retainer springs and ATS tool oil

Suitable for workshops requiring an ATS-3X rivet gun or a pneumatic tool with a 10.2 mm (.401) shank tooling interface. Verify tooling, air-supply requirements and suitability for the intended maintenance task before use.
