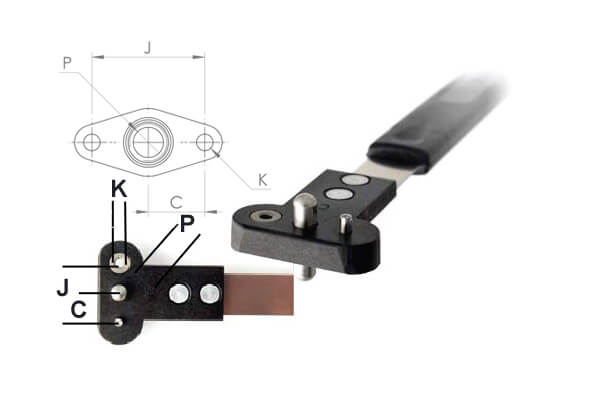

Two-Lug Plate Nut Drill Jig 8-32

Image for illustration only. It may show a product series rather than the exact product offered.

Two-Lug Plate Nut Drill Jig 8-32

https://www.roctexo.com/web/image/product.template/9493/image_1920?unique=baae363
Part numbers : RX1-12-04791 , NPJ518B , 12-04791
Unit of Measure: EA

51.90 EUR / EA 51.9 EUR 51.90 € excl. VAT

51.90 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-09-28
Order before 17:00 CET on Friday 2026-09-25
Up to 7 EA ready to ship on Thursday 2026-10-01
Order before 17:00 CET on Friday 2026-09-25
12 EA available on request, fees apply
Special order from vendor stock.

The Omega Technologies NPJ518B is a hand-held two-lug double-wing standard nut plate drill jig for 8-32 plate nuts. It is designed to assist with accurate rivet-hole drilling when installing standard plate nuts, also known as anchor nuts or nut plates.

  • Manufacturer part number: NPJ518B
  • Roctexo part number: RX1-12-04791
  • Two-lug double-wing standard configuration
  • 8-32 nut-thread reference
  • Incorporates drill bushings to support consistent hole spacing and help reduce bushing wear
  • Ergonomic handle with a flexible stainless spring blade for clearance during use
  • #40 drill size reference

Suitable for maintenance and fabrication tasks requiring a dedicated jig for the relevant two-lug standard plate-nut pattern. Verify the required nut plate configuration and applicable maintenance data before use.

Manufacturer documentation identifies this item in the Omega Technologies nut plate jig catalogue, page 45.
