Single Lug Plate Nut Drill Jig 1/4-28

Image for illustration only. It may show a product series rather than the exact product offered.

Single Lug Plate Nut Drill Jig 1/4-28

https://www.roctexo.com/web/image/product.template/114921/image_1920?unique=7dee1bd
Part numbers : RX1-12-04785 , NPJ518K , 12-04785
Unit of Measure: EA

54.50 EUR / EA 54.5 EUR 54.50 € excl. VAT

54.50 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Thursday 2026-10-01
Order before 16:00 CET on Tuesday 2026-09-29
1 EA available on request, fees apply
Special order from vendor stock.

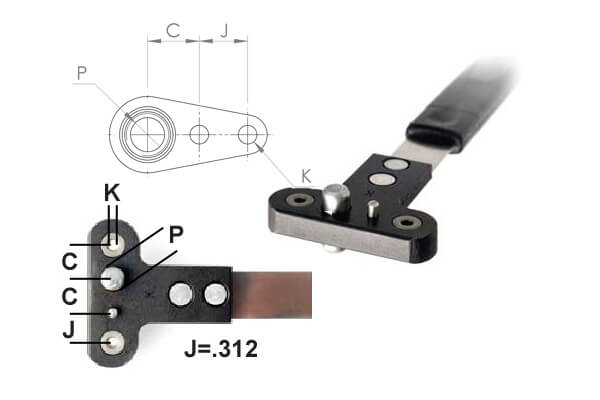

The Single Lug Plate Nut Drill Jig is a hand-held drilling guide for accurately positioning rivet holes for standard single-lug plate nuts with a 1/4-28 nut thread reference.

Manufactured to precise tolerances, the jig incorporates drill bushings intended to reduce wear and support consistent hole spacing during installation work. Its ergonomic handle and flexible stainless-steel spring blade provide clearance while the jig is in use.

  • Manufacturer part number: NPJ518K
  • Roctexo part number: RX1-12-04785
  • Nut thread reference: 1/4-28
  • Hole spacing: approximately 8.7 mm
  • Pilot diameter: approximately 6.3 mm
  • Drill size: #40
  • Unit of measure: each
