Digital Aircraft Cable Tension Meter Acx-500-1

Digital Aircraft Cable Tension Meter Acx-500-1

Part numbers : RX1-12-03762 , ACX-500-1 , 12-03762

Unit of Measure: EA

1656.78 EUR / EA 1656.78 EUR 1,656.78 € excl. VAT

1656.78 EUR / EA excl. VAT

This combination does not exist.

Up to 2 EA ready to ship on Monday 2026-07-27

Order before 17:00 CET on Friday 2026-07-24

2 EA available on request, fees apply

Special order from vendor stock.

Add to cart

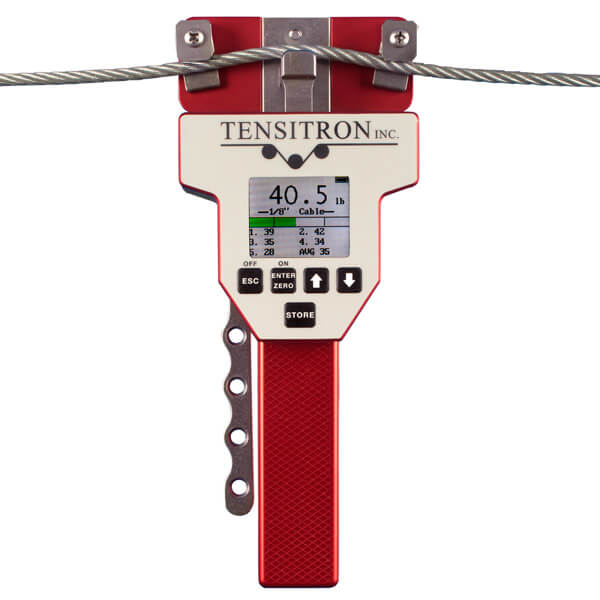

The Tensitron ACX-500-1 is a handheld digital aircraft cable tension meter designed to verify static tension in aircraft and other stationary cables. It provides a practical digital solution for maintenance personnel performing cable-tension checks during inspection, adjustment and routine maintenance.

This ACX-1 series meter combines a compact, portable format with a backlit digital display and one-handed operation for use in confined maintenance areas. Tensitron states that the ACX series is designed for repeatable cable-tension verification and is supplied with a cable diameter gauge and carrying case.

Manufacturer part number: ACX-500-1
Tension range: 1 to 500 lb
Resolution: 1 lb
Specified cable selections: 3/32, 1/8, 5/32, 3/16 and 1/4 in
Rechargeable NiMH battery
Published ACX-series accuracy: ±2% of full scale
Selectable display units stated by the manufacturer: lb, kg or daN

For detailed operating, calibration and application information, consult the official Tensitron ACX-1 Series data sheet.

Documents

ACX- 100, 250 & CWT Dimensional

ACX- 100, 250 & CWT Dimensional Drawings (PDF)

ACX 500 Dimensional Drawing (PDF)

ACX Datasheet (PDF)

Operating Manual (PDF)

Terms and Conditions

Description	Cable Selection	Resolution (Lb.)	Range (Lb.)	PN
ACX-500-1	3/32, 1/8, 5/32, 3/16, 1/4"	.1	1 - 500	12-03762

Overview

KEEP AIRCRAFTS FLYING SAFELY

ACX-1 meters are the fastest, easiest way to verify accurate cable tension. Get your aircraft off the ground and into the air with maximum performance and safety and minimum cost and time. Ideal for aircraft cables or other stationary cables up to 1/4” diameter. Custom calibrations available for specialized applications

Attention: Tensitron products may not be cancelled or returned.

Features

FAST - Quickly test cable tension
- Quick, easy, one-handed operation
- Color-bar graphic provides quick visual of tension levels
- Compact design allows access to small spaces
ACCURATE - Improve aircraft safety and performance
- Measures mm, inch, and CWT diameters
- Tension ranges from .5 lb to 1200 lb.
- Selectable units (lb., kg, or daN)
DEPENDABLE - Save time and costs with durable construction
- Durable, reliable construction
- Data storage and statistics
- Includes carrying case and NIST-traceable calibration certificate
CONVENIENT - User-friendly and easy to transport
- Lightweight, portable
- Analog or serial output (optional)
- Easy-to-read, backlit, digital display

Dimensions

ACX-251-1

DIGITAL CABLE TENSION METER

(All Models: 100, 250, 250-M, CWT & CMB)

ACX-500-1

DIGITAL CABLE TENSION METER

Each meter comes with a Cable Diameter Gage

Benefits

ACCURACY: +/- 2% full-scale for all models except ACX-1200-SCB, which is +/- 3% full-scale.
BATTERY: NiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge.
WIDTH: Models with ranges up to 250 lb. are 3.4” wide. Meters with ranges above 250 lb. are 5.2” wide.
DATA OUTPUT: Analog Output (Option “A”) or RS-232 Serial Output (Option “E”) are available as add-on options.
WARRANTY: One year against factory defects
