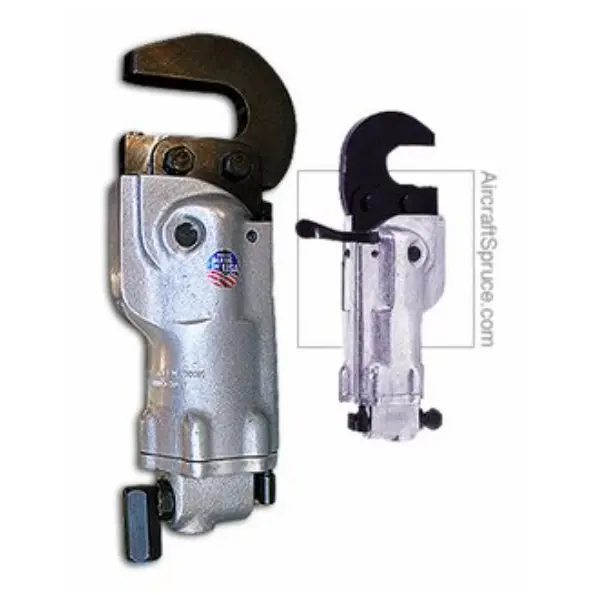

314C-1335 Pneumatic Rivet Squeezer

314C-1335 Pneumatic Rivet Squeezer

https://www.roctexo.com/web/image/product.template/101355/image_1920?unique=3dd6ab4
Part numbers : RX1-12-03400 , 314C-1335 , 12-03400
Unit of Measure: EA

719.50 EUR / EA 719.5 EUR 719.50 € excl. VAT

719.50 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The 314C-1335 Pneumatic Rivet Squeezer is a heavy-duty pneumatic tool for forming solid rivets in maintenance, repair and fabrication work. Designed for one-hand operation, it provides a maximum squeezing force of 3,000 lbf (approximately 13.3 kN).

Critical components, including the yoke, are described by the source as 4130 steel with heat treatment for durability in demanding workshop use.

  • Manufacturer part number: 314C-1335
  • Maximum force: 3,000 lbf (approximately 13.3 kN)
  • Rivet capacity, duraluminium: up to 3.2 mm (1/8 in)
  • Rivet capacity, steel: up to 2.4 mm (3/32 in)
  • Standard yoke reach: 63.5 mm (2.5 in)
  • Set travel: 14.3 mm (9/16 in)
  • Air connection/hose size: 6.4 mm (1/4 in)
  • Recommended line pressure: 90 psi (approximately 6.2 bar)
  • Product weight: approximately 3.15 kg

Please note: adjustable set holders are not supplied as standard. Suitable rivet sets and an appropriate compressed-air installation are required for use.

Contact Us

Terms and Conditions

Share

DescriptionPart No.
Model 3000 Pneumatic Rivet Squeezer12-03400

Overview

Heavy duty industrial tools are manufactured to exacting standards to insure long service life. All critical parts, including the yoke, are fabricated from 4130 steel and heat treated to RC 42-46. These rivet squeezers have earned a reputation for durability and reliability through years of service on the production lines of major airframe manufacturers such as Grumman, Piper, Beech and Cessna. Easily operated by one hand.

Note: These do not come standard with adjustable set holders

Specifications
