Pro Differential Pressure Tester Kit With Extension Tool

https://www.roctexo.com/web/image/product.template/27311/image_1920?unique=325095d
Part numbers : RX1-12-03330 , 2EM-KIT , 12-03330
Unit of Measure: EA

181.79 EUR / EA 181.79 EUR 181.79 € excl. VAT

181.79 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

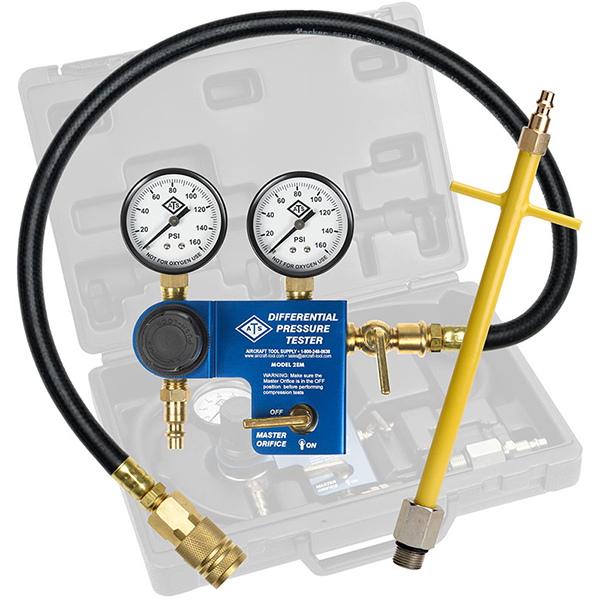

The ATS Pro Differential Pressure Tester Kit combines the ATS 2EM Differential Pressure Tester with Master Orifice and a spark plug port extension tool to support practical cylinder leak-down testing during aircraft engine maintenance.

The extension tool is intended to improve access to spark plug ports, while the protective form-fitted hard case helps keep the kit organised between maintenance tasks.

  • ATS 2EM Differential Pressure Tester with Master Orifice
  • Spark plug port extension tool
  • 18 mm adapter for the extension tool
  • Protective form-fitted hard case

Manufacturer part number: 2EM-KIT.

The tester incorporates a 0.040 inch orifice. Use the applicable engine manufacturer maintenance data and approved maintenance procedures to determine the correct test method and acceptable results.

Contact Us

Terms and Conditions

Share

Overview

Paired together is the line ATS 2EM Differential Pressure Tester (with Master Orifice) along with the Spark Plug Port Extension Tool to make maintenance a whole lot easier.

Protective form-fitted hard case included.

NOTE: The ATS 2EM Differential Pressure Tester has a .040” orifice as required by Teledyne Continental SB03-3 Service Bulletin, and is the proper type of instrument to test ALL Teledyne Continental engines in accordance with the aforementioned bulletin. The ATS 2EM also complies Textron Lycoming SI-1191A Service Instruction and is appropriate for ALL Textron Lycoming engines as indicated in the Service Instruction.

Note: The factory calibration is valid from one year after end user has purchased from ATS or from an authorized distributor.

In The Box

  • 1 - ATS 2EM Differential Pressure Tester (with Master Orifice)
  • 1 - Spark Plug Port Extension Tool
  • 1 - Protective form-fitted hard case
  • 1 - 18mm adapter (for extension & tool)
