EFIS Systems Tool Kit

Image for illustration only. It may show a product series rather than the exact product offered.

EFIS Systems Tool Kit

https://www.roctexo.com/web/image/product.template/54713/image_1920?unique=9fb3ee9
Part numbers : RX1-12-03284 , SA-A2 , ASS-12-03284 , 12-03284
Unit of Measure: EA

138.43 EUR / EA 138.43 EUR 138.43 € excl. VAT

138.43 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 6 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
8 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

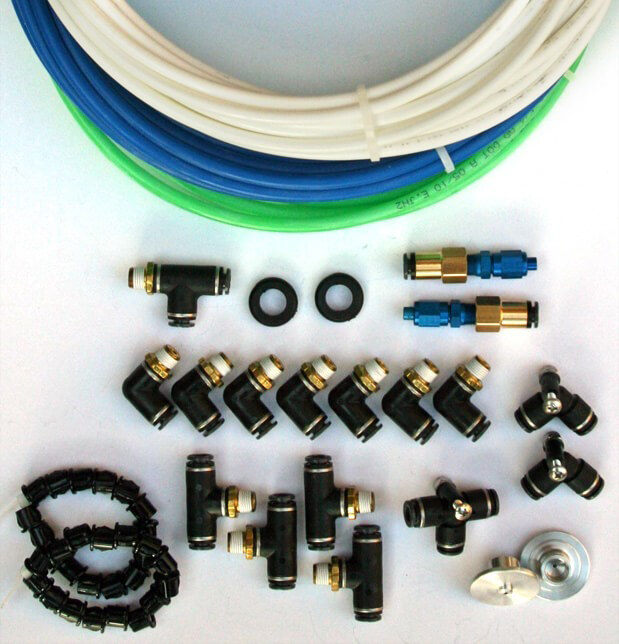

The Avery EFIS System Plumbing Kit, manufacturer part number SA-A2, is a pneumatic plumbing kit for experimental-aircraft EFIS installations. It provides colour-coded tubing and a selection of fittings and installation hardware for pitot, static and angle-of-attack (AOA) line routing.

The push-to-connect fittings use stainless-steel retainers to secure the tubing. Tubing can be released by depressing the fitting release ring. O-ring sealing is specified for the fitting connections.

Kit contents include:

  • 7 × 90° male elbows
  • 4 × male branch tees
  • 1 × union tee
  • 2 × union 90° fittings
  • 2 × female connectors
  • 2 × static ports
  • 2 × AN hardware assemblies
  • 2 × synthetic-rubber grommets
  • 30 × snap bushings
  • Approximately 7.6 m of 6.4 mm green tubing for pitot routing
  • Approximately 9.8 m of 6.4 mm white tubing for static routing
  • Approximately 7.0 m of 6.4 mm blue tubing for AOA routing

Intended for experimental aircraft only. Selection, installation and suitability remain the responsibility of the aircraft builder or installer.
