Cherry G689 Riveter

Image for illustration only. It may show a product series rather than the exact product offered.

Cherry G689 Riveter

https://www.roctexo.com/web/image/product.template/107263/image_1920?unique=25ee010
Part numbers : RX1-12-02983 , G689 , 12-02983
Unit of Measure: EA

16367.14 EUR / EA 16367.14 EUR 16,367.14 € excl. VAT

16367.14 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

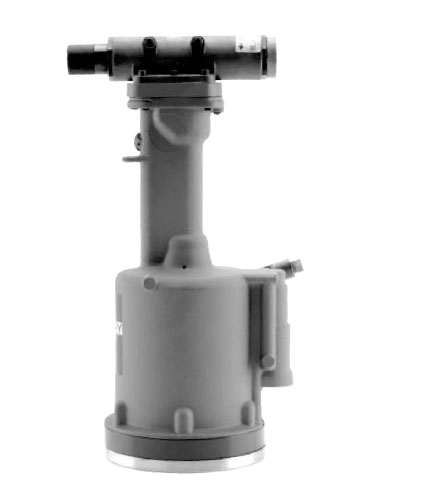

The Cherry Aerospace G689 Hydro-Shift Riveter is a heavy-duty pneumatic-hydraulic installation tool for CherryLOCK® rivets. It is primarily recommended for 6.4 mm (1/4 in) diameter CherryLOCK® rivets and may be used with compatible pulling heads and adapters for applicable rivet installations.

The robust all-metal housing is suited to workshop use. The tool is designed for one-hand operation in multiple positions and features low recoil and low noise characteristics.

  • Manufacturer part number: G689
  • Operating air pressure: 6.2–7.6 bar
  • Pulling force: 16.9 kN at 6.2 bar
  • Maximum stroke: 37.5 mm
  • Air consumption: 14.2 L per cycle
  • Noise level: 74.1 dB(A)
  • Vibration: less than 2.5 m/s²
  • Compatible directly with H681 Series pulling heads for bulbed and standard NAS 2000 Series CherryLOCK® rivets

Please select the correct pulling head and any required adapter for the rivet shank diameter and head style being installed.
