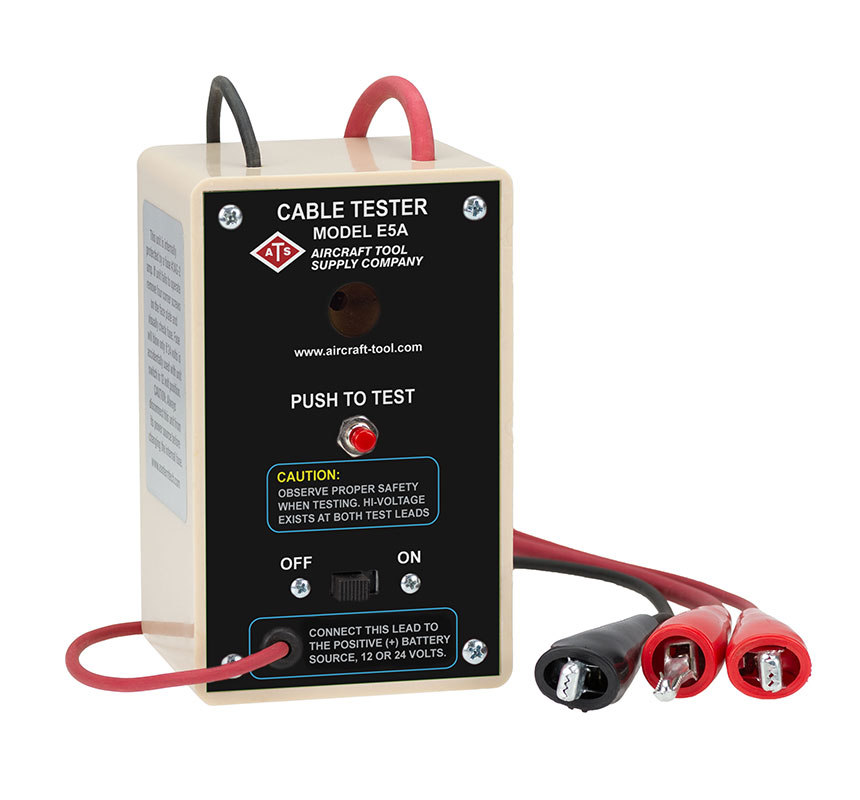

E5A High Voltage Cable Tester

Image for illustration only. It may show a product series rather than the exact product offered.

E5A High Voltage Cable Tester

https://www.roctexo.com/web/image/product.template/17675/image_1920?unique=4fc420d
Part numbers : RX1-12-01016 , E5A , 12-01016
Unit of Measure: EA

147.62 EUR / EA 147.62 EUR 147.62 € excl. VAT

147.62 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 9 EA ready to ship on Monday 2026-09-28
Order before 15:30 CET Tomorrow
Up to 29 EA ready to ship on Thursday 2026-10-01
Order before 15:30 CET Tomorrow
40 EA available on request, fees apply
Special order from vendor stock.

The ATS E5A High Voltage Cable Tester is a solid-state workshop test instrument for assessing aircraft engine ignition cables. It produces shaped, low-current high-voltage pulses with a profile intended to simulate magneto output, helping maintenance personnel identify cable insulation or leakage faults during ignition-system troubleshooting.

Designed for straightforward operation, the E5A automatically operates from 12 V or 24 V DC aircraft battery systems. A safety power indicator warns when the unit is armed and ready, while heavy-duty lead wires support regular maintenance use.

  • Manufacturer part number: E5A
  • Tests ignition cables at up to 30,000 V
  • Automatic 12 V / 24 V DC operation
  • All solid-state circuitry
  • Shaped, low-current test pulses designed to resemble magneto output
  • Safety power indicator
  • Heavy-duty lead wires

For use by appropriately qualified personnel in accordance with the manufacturer’s operating instructions and applicable maintenance procedures.

Contact Us

Terms and Conditions

Share

Overview

The Model E5 High Voltage Cable Tester tests Hi-Voltage aircraft engine ignition cables quickly and accurately. And it's incredibly easy to use: simply connect the three wires, push the test button and check the test window. That's all there is to it. By simulating the magneto's high output voltage, the E5 instantly identifies both good and defective cables. And it operates on either 12 or 24 volts,D.C.

The E5 eliminates guess work, saves valuable time, is equipped with an audio high voltage indicator to ensure safety and is 100% dependable. And no other high quality cable tester is as attractively priced.

Features

  • Automatically works with Both 12 & 24 Volt Aircraft Battery Systems
  • All Solid State Circuitry
  • Test Cables at up to 20,000 Volts
  • Produces Voltage Pulses Similar to Magneto's Output for Realistic Testing.
  • Heavy-Duty Lead Wires
