Micro-Stop Countersink Cage

Micro-Stop Countersink Cage

https://www.roctexo.com/web/image/product.template/74036/image_1920?unique=9c467c1
Part numbers : RX1-12-00940 , 19365 , 12-00940
Unit of Measure: EA

48.53 EUR / EA 48.53 EUR 48.53 € excl. VAT

48.53 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 21 EA ready to ship on Thursday 2026-08-20
Order before 16:00 CET on Tuesday 2026-08-18
Up to 37 EA ready to ship on Monday 2026-08-24
Order before 16:00 CET on Tuesday 2026-08-18
45 EA available on request, fees apply
Special order from vendor stock.

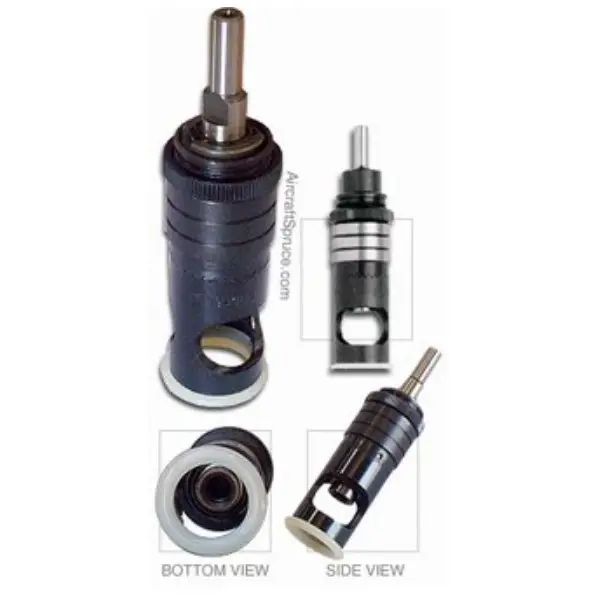

The Micro-Stop Countersink Cage is an adjustable tool for controlled countersinking operations. It provides fine depth adjustment in 0.025 mm increments with a positive adjustment lock to support repeatable setup.

  • Manufacturer part number: 19365
  • For 1/4-28 threaded countersink cutters
  • 6.4 mm shank diameter
  • Approx. 7.1 mm shaft travel
  • Up to 14.3 mm cutter capacity
  • Supplied with a non-marking foot piece
  • Rated speed: up to 3,000 RPM

Suitable for maintenance and fabrication tasks where accurately controlled countersink depth is required.

Contact Us

Terms and Conditions

Share

Overview

2 Models available-one with NEEDLE bearing and one with BRONZE bushings. .001” increment depth adjustment. Positive adjustment lock. 1/4” dia. shank. 9/32” shaft travel. 9/16” cutter capacity. For 1/4-28 threaded cutters. Comes with “NO-MAR” foot piece. Rated at 3,000 RPM.

Made in USA.
