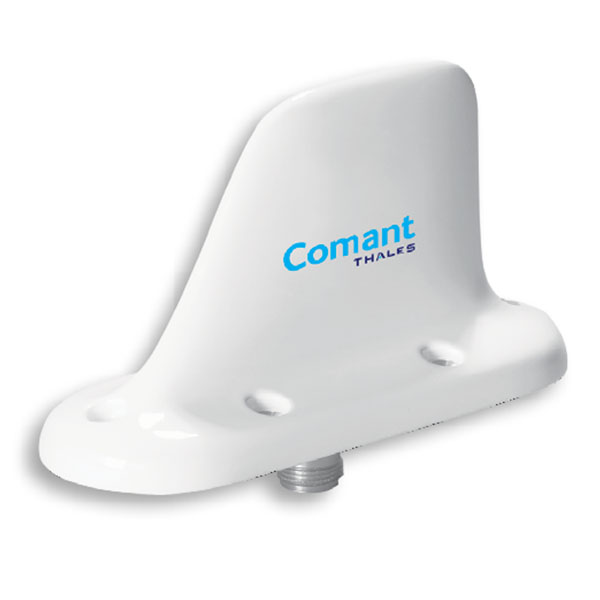

Comant Transponder Cellular WiFi UMTS Antenna - CI 150-301

The Comant CI 150-301 is a six-hole, blade-style aircraft antenna designed for transponder, cellular, Wi-Fi and UMTS communications use. It provides coverage across 700–2700 MHz, including the stated ADS-B Out and DME frequency ranges.

The antenna uses a female TNC RF connector and a white polyurethane-painted finish. Its vertical polarisation and quarter-wave-stub-equivalent radiation pattern support installations requiring this antenna configuration.

• Part number: CI 150-301
• Frequency coverage: 700–799 MHz, 800–849 MHz, 850–1029 MHz, 1030–1090 MHz and 1091–2700 MHz
• RF impedance: 50 Ohm
• RF power: 100 W maximum; 1,000 W peak
• Connector: TNC female
• Mounting style: six through-hole blade mount
• Approximate height: 86 mm
• Approximate weight: 0.23 kg
• Environmental standard stated by source: RTCA DO-160G

Please consult the applicable manufacturer installation data and the approved aircraft maintenance documentation before installation.
