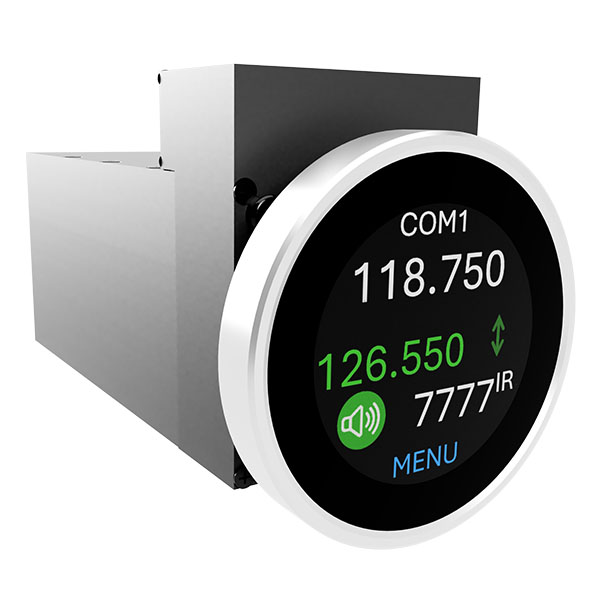

Microair Avionics T3000BNR2D Skysuite Core Battery Nav Sensors Radio 3.1 Display 2.1 Active Touch Screen And Harness

The Microair Avionics T3000 skySuite configuration, manufacturer part number 20001644, combines a skySuite core with battery backup, navigation sensors, radio, one instrument display and harness.

Microair’s modular T3000 skySuite platform is intended for Experimental and Light Sport Aircraft applications. This configuration provides a compact foundation for integrated flight-information and communications installation, while retaining the modular approach of the skySuite system.

• T3000 navigation-sensor functionality including GNSS position source, air-data and AHRS functions.
• Radio module supporting 8.33 kHz and 25 kHz channel spacing, with dual-channel receive capability.
• One 3.1 in (approximately 79 mm) diameter instrument display with a 2.1 in (approximately 53 mm) active touchscreen area.
• Display installation in a standard 2¼ in (approximately 57 mm) instrument-panel opening.
• Battery backup specified by Microair for continued instrument-display operation.
• Harness included as identified in the product configuration.

The T3000 display supports touchscreen, rotary-bezel and push-button interaction. Refer to the applicable Microair installation and operating documentation when planning the installation, configuration and aircraft interface.

Documentation: Microair T3000 Flight Instrument User Manual

Part number: 20001644
