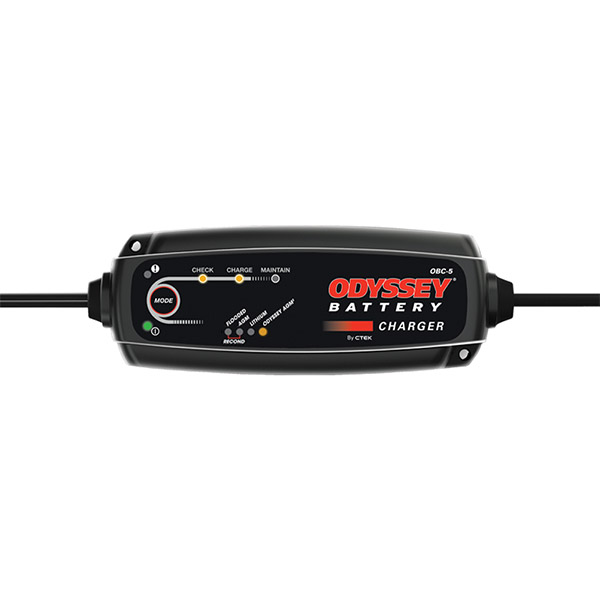

Odyssey Charger OBC-5A

The ODYSSEY® OBC-5A is a compact automatic 12 V battery charger and maintainer from EnerSys ODYSSEY. Designed for smaller batteries, it provides selectable charging for a range of 12 V lead-acid and lithium battery types.

Manufacturer part number: OBC-5-A

• 12 V output, 4.3 A
• Suitable for 5–50 Ah batteries
• Supports 12 V WET, EFB, maintenance-free, Ca/Ca, AGM, AGM², GEL and LiFePO₄ battery types
• Fully automatic charging after battery-type selection
• Integrated temperature control and battery-status indication
• IP65-rated enclosure for dust and splash protection
• EU mains input: 220–240 VAC, 50–60 Hz, maximum 1.8 A
• Operating ambient temperature: -20 °C to +50 °C
• Approximate dimensions: 168 × 66 × 38 mm; weight approximately 0.59 kg

This charger requires a continuous AC mains supply for charging and is not a jump-start device. Verify the battery chemistry, capacity and charging requirements before use. No aircraft-specific approval or installation compatibility is stated.

Relevant documentation: ODYSSEY OBC-5A Battery Charger Manual.
