MyGoFlight Vans RV-8 Flex Bolted Quick Release

MyGoFlight Vans RV-8 Flex Bolted Quick Release

https://www.roctexo.com/web/image/product.template/289917/image_1920?unique=6d79934
Part numbers : RX1-11-21086 , MNT-2055 , 11-21086
Unit of Measure: EA

190.44 EUR / EA 190.44 EUR 190.44 € excl. VAT

190.44 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
4 EA available on request, fees apply
Special order from vendor stock.

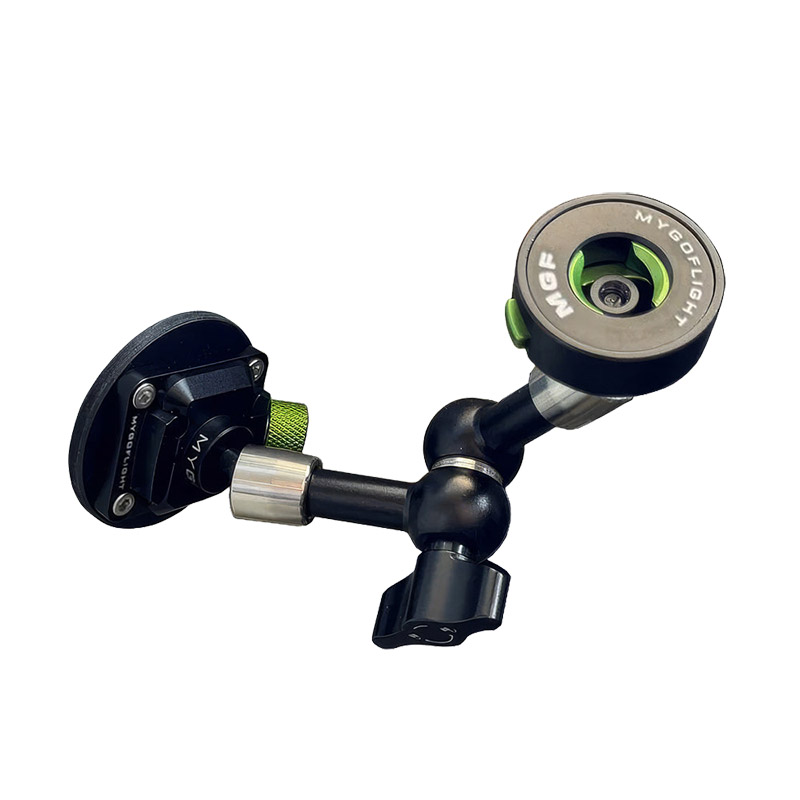

The MyGoFlight Vans RV-8 Flex Bolted Quick Release is a cockpit device-mounting assembly designed specifically for the Vans RV-8. Manufacturer part number MNT-2055.

The assembly uses a concentric-ring base installed through the lightening hole in the RV-8 windshield-bow gusset, allowing the quick-release base to be fitted on either the left or right side of the cockpit. Its Mini Flex Arm provides adjustable positioning and 360° rotation for portrait or landscape orientation.

  • RV-8-specific bolted quick-release base
  • Mini Flex Arm, 5 in (127 mm)
  • Proprietary quick-release adapter for MyGoFlight device holders
  • Aluminium and stainless-steel construction
  • Maximum extension: 6 in (152 mm)
  • Minimum length: 2.5 in (64 mm)
  • Weight: 0.227 kg
  • Includes four M4 × 16 mm stainless-steel screws

The quick-release arrangement allows the Flex Arm to be removed or stowed when not required. Compatible MyGoFlight device holders are sold separately.

Installation note: The manufacturer states that installation requires minor material removal and deburring at the four mounting-hole positions on the windshield-bow gusset. Refer to the manufacturer’s fitting instructions before installation.
