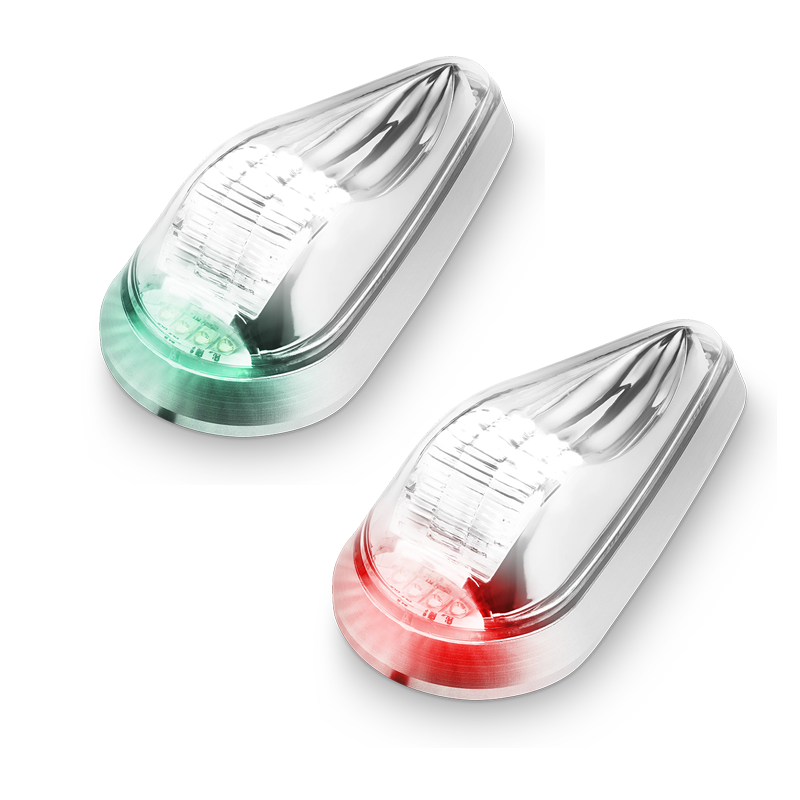

AeroLEDs Pulsar 660 EXP Wingtip Forward & Tail Position / Anti-Collision Light Left (14V)

The AeroLEDs Pulsar 660 EXP, manufacturer part number 01-1380-C-12-L, is a left-hand 14 VDC LED wingtip assembly for experimental aircraft. It combines a red forward position light, aft-facing white tail position light and white anti-collision light in one aerodynamic, low-drag unit.

The assembly uses high-efficiency LEDs and incorporates a UV-hardcoated polycarbonate lens, clear-anodised aluminium base, built-in thermal protection, and resistance to shock and vibration. No external power supply is required.

• Manufacturer: AeroLEDs
• Manufacturer part number: 01-1380-C-12-L
• Configuration: left-hand, red forward position / white rear position / white anti-collision
• Electrical system: 14 VDC
• Current draw: position light 0.8 A; anti-collision light 0.8 A average, 3.8 A peak
• Mounting: industry-standard three-position screw pattern; mounting bracket included
• Approximate dimensions: 102 × 48 × 38 mm
• Strobe synchronisation: compatible with AeroLEDs SunTail 550 EXP synchronisation

Approval status: This is an experimental-use product and is not EASA/FAA approved. It is not approved for use on certified aircraft. Refer to the applicable AeroLEDs installation instructions and datasheet for installation, wiring and operational limitations.
