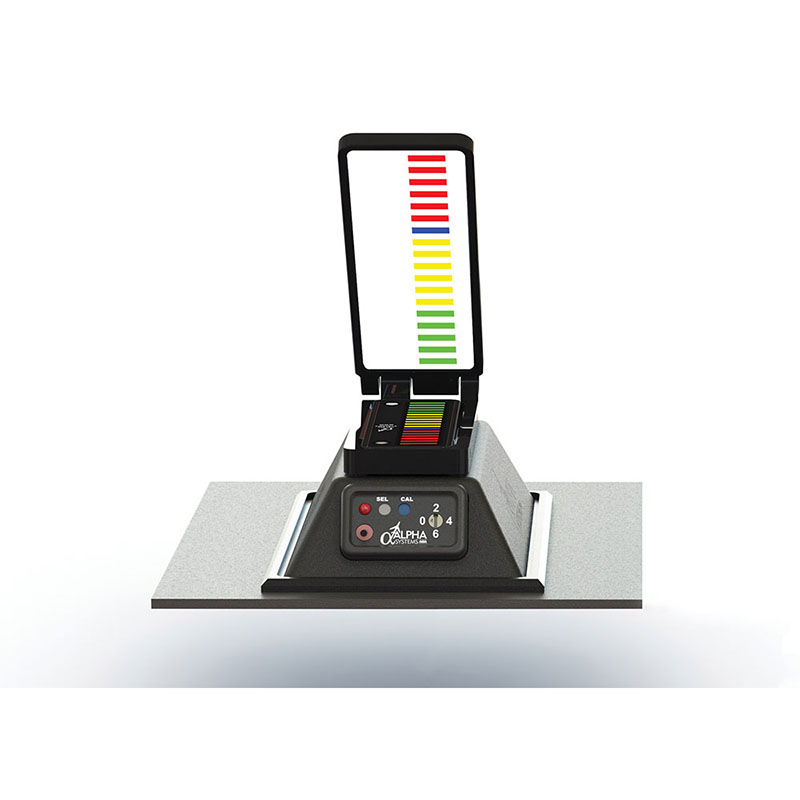

AOA Falcon Pressurized Above Dash HUD Kit DSTR-AOA-9200PK-(ADH)

The Alpha Systems AOA Falcon Pressurized Above Dash HUD Kit is an angle-of-attack indication system configured for pressurised aircraft installations. Manufacturer part number DSTR-AOA-9200PK-(ADH).

The above-dash heads-up display places a vertical, full-colour LED indication in the pilot’s peripheral vision. The display uses a self-contained adjustable beam-splitter adapter with an enhanced colour-correcting, anti-glare lens. During operation, the indication presents blue for on-speed, yellow for low angle of attack and red for high angle of attack.

• Pressurised Falcon AOA kit with Above Dash HUD configuration
• Vertical full-colour LED angle-of-attack display
• Three-point, aircraft-specific calibration through the pre-mounted switch panel
• 16 selectable LED brightness levels, with photocell-supported day/night brightness settings
• Four user-selectable audio options and an audio-mute switch with amber status indication
• System input: 12–28 VDC
• Maximum published system power draw: less than 0.250 A at full brightness

The manufacturer describes the pressurised kit as including the components required for mounting the AOA sensing probe, associated hose connections and an AOA sensor module outside the pressurised bulkhead, with internal connections for display, power and audio functions. Final installation configuration and any additional aircraft-specific installation materials should be verified against the applicable manufacturer documentation.

Suitable for maintenance organisations and operators requiring the Falcon pressurised AOA system with an above-dash HUD presentation.
