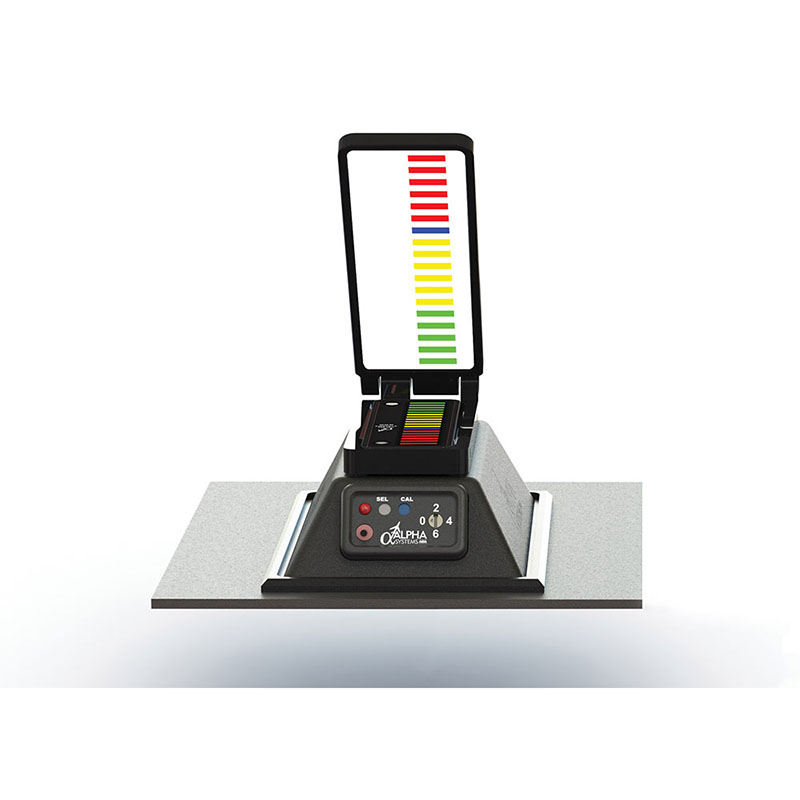

AOA Falcon Above Dash HUD Kit DSTR-AOA-9200K-(ADH)

The Alpha Systems AOA Falcon Above Dash HUD Kit provides a Falcon vertical LED angle-of-attack display with an above-dash heads-up-display adapter. The adjustable beam-splitter HUD is designed to present AOA information within the pilot’s peripheral vision and incorporates an enhanced colour-correcting, anti-glare lens.

The vertical light-bar display uses blue, yellow and red LED indications to present calibrated AOA guidance. A remote switch panel supports a three-point calibration process, selectable audio options and an audio-mute function with amber indicator. The display incorporates a photocell and offers 16 selectable brightness levels for day and night operation.

• Manufacturer part number: DSTR-AOA-9200K-(ADH)
• 12–28 V DC input; stated maximum system draw below 0.250 A at full brightness
• Above-dash HUD assembly with mounting frame, base adaptor plate, dome, tinted lens, display brackets, hardware and HUD cover with flag
• Kit includes Falcon display, switch panel module, interface module, non-heated standard probe, 9 x 9 probe mounting plate, cables, pneumatic hose, probe cover and installation accessories
• HUD frame: approximately 10.5 x 3.2 cm; base adaptor plate: approximately 11.7 x 7.1 cm; dome: approximately 10.8 x 6.1 x 2.4 cm

Relevant manufacturer documentation includes the Falcon Installation Manual, Falcon Operations Manual, Quick Calibration Guide, Calibration Failures Guide, connection diagram and HUD dimensional drawings. Verify installation configuration, probe location and applicable airworthiness requirements before installation.
