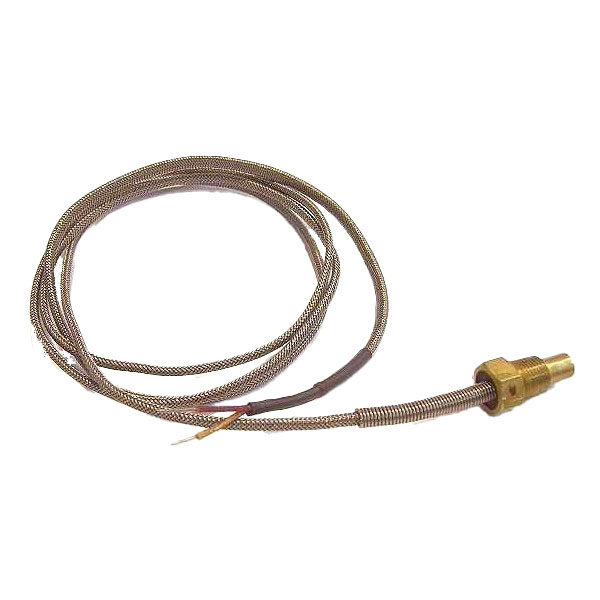

Garmin Carburetor Air Temperature Probe 494-70010-00
Part Number(s): 11-20432, 494-70010-00
Unit of Measure Name:
Units
Internal Reference:
RX1-11-20432
Overview
| Garmin Carburetor Air Temperature Probe 494-70010-00 NOTES: Ungrounded probe. |
Specifications
- Function: Carburetor Air Temperature Probe
- Operating Temperature Range: -45 °C to +160 °C (-49 °F to +320 °F)
- Accuracy: Above 0 °C: ± 2.2 °C or .75%, whichever is greater
- Accuracy: Below 0 °C: ± 2.2 °C or 2%, whichever is greater
- Material: Brass
- Thermocouple Type: K (red and yellow)
- Stagger: Reverse (Red wire longer than yellow wire)
- Thread: 1/4” -28
- Mount Type: Screw-in
- Tip Length: 0.5”
